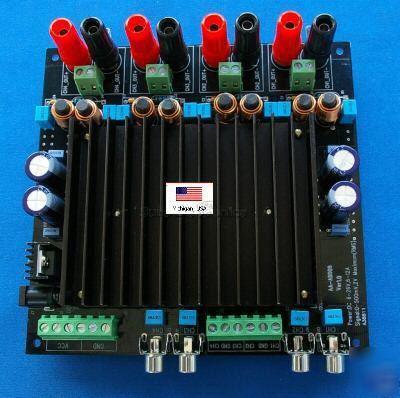

4*100 watt @ 4OHM, d-class audio amplifier board *usa
Your Homeland Electronics Store FCB ElectronicsAnn Arbor, Michigan
U.S.P.S. Priority Mail 2 to 3 days.
4*100 watt @ 4ohm, D-class Audio Amplifier Board
* Protection (thermal, over load )
* High Power efficiency up to 90% ( 2CH OUT at 30W )
* No ON/OFF POP Noise ( Sleep, Mute )
* Operating Environment Temperature Range: 0~+55 ℃
* StorageEnvironmentTemperatureRange:-25~+85 ℃ .
4*100 watt @ 4ohm, D-class Audio Amplifier Board
* GND should be connected to GND or the housing of your instrument.
* There are two audio-input methods. One is to input via audio connector jack. Another is to input via ports (J9, J10).
* There are two audio-output methods. One is to output via ports (J1, J2, J3, and J4). Another is to output via corresponding banana jack.
