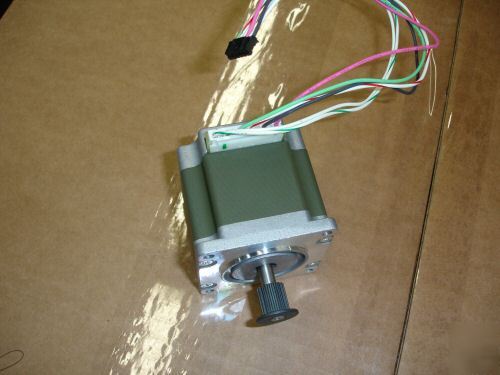

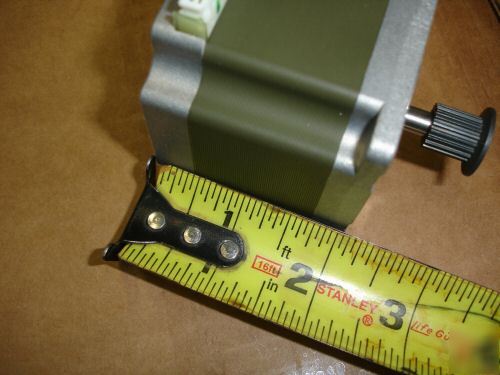

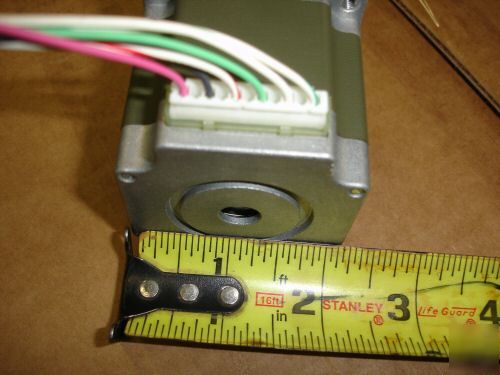

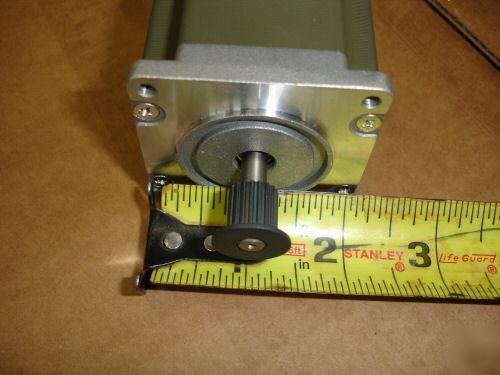

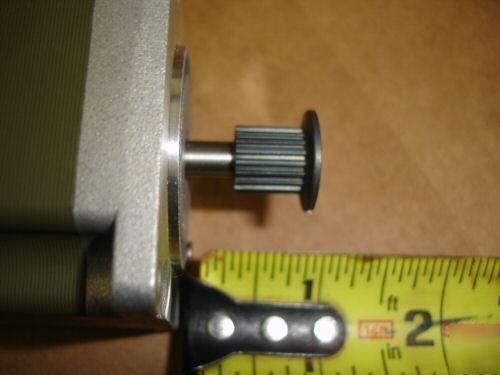

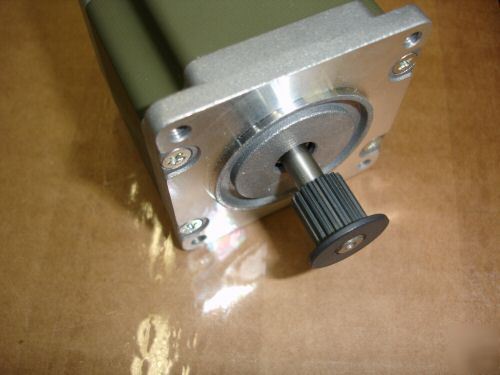

New japan servo nema 23 stepping motor 1.8DEG/step
These motors feature Low Noise, High torque (118 oz-in) and low vibration. The motors have a 1.8° step size, for 200 steps per revolution.
They are six wire 2 phase stepping motors. Each phase is 4 ohms or 2 ohms center tap to end. They each weight 1.4 lbs.
KH56KM2-OEM (last 3 digits are custom to the OEM)
http://www.japanservo.co.jp/digital/english/general/pdf/KH56K.pdf
I'm not sure of running voltage but I have mine hooked up to power supply "Mean Well 24vdc 6.8 amp."
I also think many would like to know that it can be hooked up with 4 wires. It seems there is no information on internet to help us hobbiest.
The colors are as follows on controller:
White with green stripe to terminal A
I have them hooked up to "Mechatronics" 4 axis controller available on e-bay and it hooks up fine and runs flawlessly with Mach 3
