Endress hauser prowirl 70W flowmeter, hart, 1" tc, ss

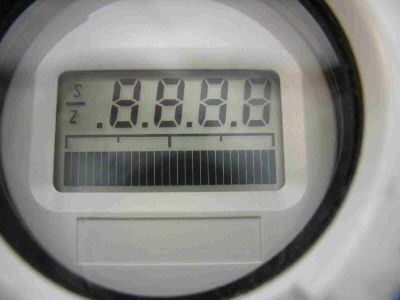

ITEM: ENDRESS + HAUSER Prowirl 70W Vortex Flow Measuring System, "Compact" Version with Integrally Mounted Local Display, HART Field Communications Protocol, 1" (DN 25) - Wafer Flange Style w/ 316L SS Flanges and Integrally Welded Tri-Clamp Ends, Prowirl Wafer Style Sensor Element, TM +752 F, 0-28 Gallons Per Minute Full Scale, 4-Character LCD Display (Two Whole Unit Digits and Two Decimals), External Programming Access Via External Pushbuttons, NEMA 4X, 12-30VDC Supply Voltage (NOTE: We tested it with a 24VDC Supply). Includes a copy of the Prowirl 70 for HART manual in paper and CD format. NOTE: E+H's Commuwin software that allows communication between this unit and a PC for remote/distributed control operation is available free to download at the E+H website.
-S25 - Nominal Size / Tube Material - 1 (25mm), 316L SS
-B0A - ? -0 - Secondary Containment - 360 psi secondary containment
-0 - Calibration - +/-0.1% flow calibration, standard density calibration
-A - Protection Type / Version - NEMA 4X / Compact version
-D - ??? Approvals - FM approved NI, Class I, Div. 2, Grps. A-D; DIP Class II, III; Div. 1, Grps. E-G

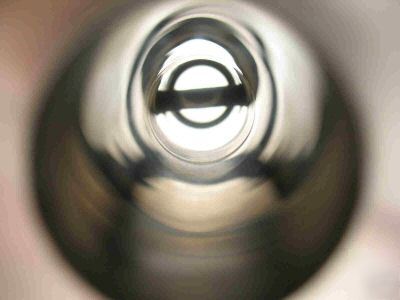

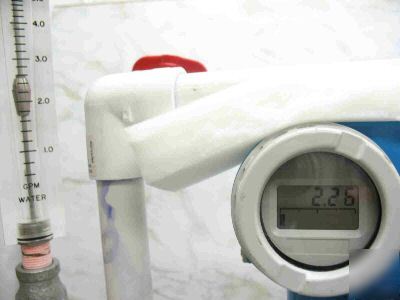

CONDITION: USED in GREAT CONDITION, CLEAN as a whistle outside AND inside, element interior in pristine, mirror-like polish finish, was used in the production of ophthalmic (eye) products, a FEW MINOR EXTERNAL scratches and nicks on stainless body and epoxy painted surfaces, flange faces in Excellent condition. BENCH TESTED by us with ACTUAL DYNAMIC FLOW CONDITIONS using water and a simple flowmeter to verify approximate flow conditions.

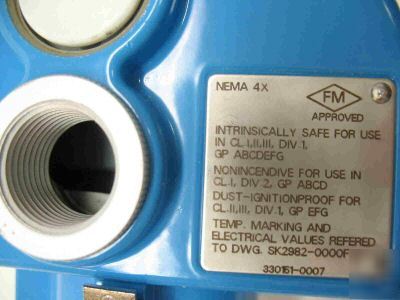

NON-INCENDIVE CL I, Div 2 Gp ABCD
DUST IGNITION PROOF CL II, III, Div 1, Gp EFG
SOURCE: Surplus to the ongoing operations of a major pharmaceutical manufacturing company. Unit was removed from service when the company recently (mid 2007) closed a production facility.
WHAT THE MANUFACTURER SAYS ABOUT THE PRODUCT:
"The Prowirl 70 vortex flowmeter measures the volumetric flow of fluids having widely differing characteristics:
· Energy production, heat supplies
· Chemicals and petrochemicals
Prowirl measures the volumetric flow at process conditions. If the process pressure and temperature are constant, Prowirl can be programmed to display or output the flowrate in mass, energy or corrected volume units. In cases where process conditions are changing, the universal E+H Compart DXF 351 flow computer calculates these values continuously using signals from Prowirl and from additional pressure and temperature transmitters."
SOLD ELSEWHERE FOR APPROX.: Originally Approx. $4,000 New, Currently $600+ Used.
