Schneeberger ball screw linear actuator stage thk iko

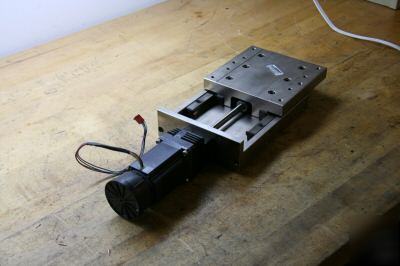

Schneeberger Cross Roller Linear Actuator
* Stage Make/Type: Schneeberger Cross Roller Linear Stage
* Stage Length: 200 mm (7.87")
* Stage Width: 150 mm (5.91")
* Stage Height: 50 mm (1.97")
* Stage Travel: 105 mm (4.13")
* Ball Screw Lead: 2 mm (0.08")
Here is an extremely rigid and smooth cross roller stage. Unlike many cheaper stages which use aluminum for the frame, the entire construction of this stage is comprised of hardened and ground steel. The rolling elements are cylindrical rolling elements and are separated from each other making cross roller stages very rigid and smooth in a small package. The total travel on this is about 105 mm or just over 4". The ball screw is precision ground and has a 2 mm lead (travel per turn is 2 mm). The stage dimensions are listed above. The top of the stage has tapped holes for easy mounting and the base has thru holes to bolt it down. The driven end has a double stack 2-phase stepper motor. Cosmetically, this is in beautiful shape apart from a lightly bent label and a few light scratches on the top. This is guaranteed not DOA.
