> Optical interference filter 633NB0.8 25MM hene laser
Optical interference filter 633NB0.8 25MM hene laser
My Stores LogoCheck out my other items!
This filter is NOS from an OEM. The filter is used to isolate the output from a HeNe laser.
This filter has a very sharp single transmission peak with a HBW < 1nm.The filter has about 60% transmission, and controls the light from the deep UV to >1200nm.
A good application would be to mount in front of a detector, to remove room light. Also can be used as a very high resolution filter for the output of a HeNe laser.

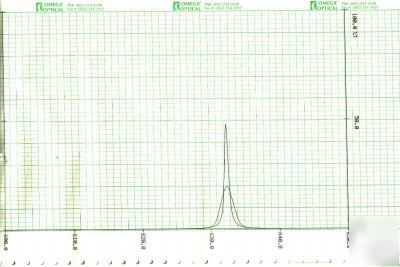

Specifications follow:CWL 632.8nm +-0.1nm, HBW 0.8nm nominal, Minimun Transmission 50%, Size 25mm +-.2mm. Transmission Curve provided. Note the overlay of the filter's indicated performance when scanned with a 2nm effective band, and when scanned with a 0.05nm band. This indicates the actual bandwidth is << 0.8nm.
For much more information on interference filters and their applications please visit my blog at www.bjomejag.squarespace.com/ . If you have ideas for additional topics to elaborate on, do leave a note.
