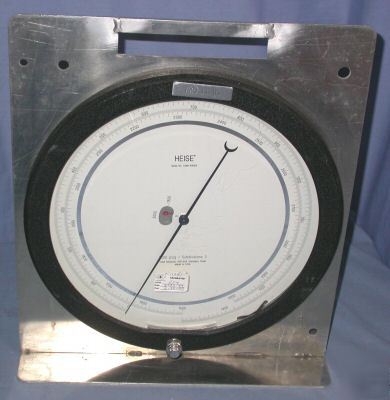

> Heise cc-113181 dial pressure gauge 350 in. water
Heise cc-113181 dial pressure gauge 350 in. water
0 - 350 In. Water / Subdivisions 0.5
This item is used and in excellent working condition!

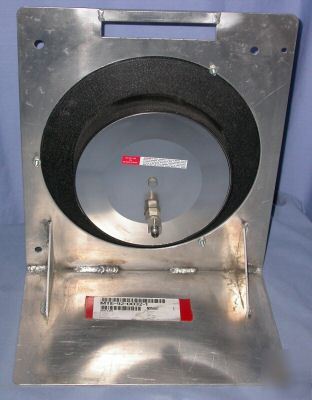

Mounted in a custom aluminum frame.
This item Retails for over $400.00.
Heise Model CC Dial Pressure Gauge
The Heise® precision pressure gauge yields consistent, reliable accuracy through the use of state-of-the-art precision machining and the world's most refined Bourdon tube technology. This eliminates the need for a power source and precludes the associated problems such as susceptibility to electronic line noise, power outage or potential fire hazard. In addition, this mechanical instrument is simple to operate, easy to troubleshoot, and can be readily flushed or purged to remove foreign matter or trapped gas. That's why the Heise® precision dial gauge is the #1 choice in precision mechanical pressure instrumentation.
* Pressure measurement accuracy of +/- 0.1% F.S., ASME B40.1 grade 4A
* Pressure ranges from 0 to 350 In. Water / Subdivisions 0.5
* Approximately 12" dial face diameters
* Solid-front protective case with "blow-out" rear cover
* Mirror band dial and knife edge pointer to eliminate parallax reading error
* Tube Material: Beryllium Copper
