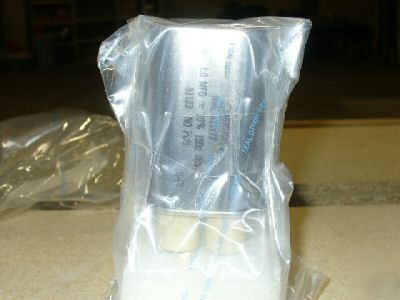

Capacitor,fixed,paper dielectric
CAPACITANCE VALUE PER SECTION - 1.000 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION - -10.00 TO 10.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION - 700.0 AC-RMS SINGLE SECTION
NONDERATED OPERATING TEMP - -40.0 DEG CELSIUS MINIMUM AND 80.0 DEG CELSIUS MAXIMUM
BODY STYLE - 13A W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE
BODY LENGTH - 2.160 INCHES NOMINAL
BODY WIDTH - 1.310 INCHES NOMINAL
BODY HEIGHT - 3.120 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR - 1C NO COMMON OR GROUNDED ELECTRODE(S)
CONTINUOUS CURRENT RATING IN AMPS - 7.0
TERMINAL TYPE AND QUANTITY - 2 STANDOFF, THREADED STUD
TERMINAL HEIGHT FROM BODY - 1.250 INCHES MAXIMUM
TERMINAL DIAMETER - 0.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH - 0.810 INCHES NOMINAL
CASE INSULATION MATERIAL - PLASTIC
DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT - 0.200
RELIABILITY INDICATOR - NOT ESTABLISHED
SPECIAL FEATURES - ITEM MUST COMPLY WITH REQUIREMENTS OF DEFENSE SUPPLY CENTER COLUBMUS PRODUCTION STANDARD NO. LO4507
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS - REFERENCE NUMBER DIFFERENTIATING MATERIAL WILL BE IN ACCORDANCE WITH NAVAL INVENTORY CONTROL POINT ACTIVITY HX QUALITY CONTROL. MANUFACTURING AND TESTING SPECIFICATIONS AVAILABLE AT THE DLA ICP.
CRITICALITY CODE JUSTIFICATION - ZZZY
III INTERNAL ELECTRICAL CONNECTION TYPE - EXTENDED FOIL
(NON-CORE DATA) OVERALL LENGTH - 2.160 INCHES NOMINAL
(NON-CORE DATA) OVERALL HEIGHT - 4.370 INCHES MAXIMUM
(NON-CORE DATA) OVERALL WIDTH - 1.310 INCHES NOMINAL
DESIGN CONTROL REFERENCE - S11177
