Wardwell 144 carrier braider B10.144.21

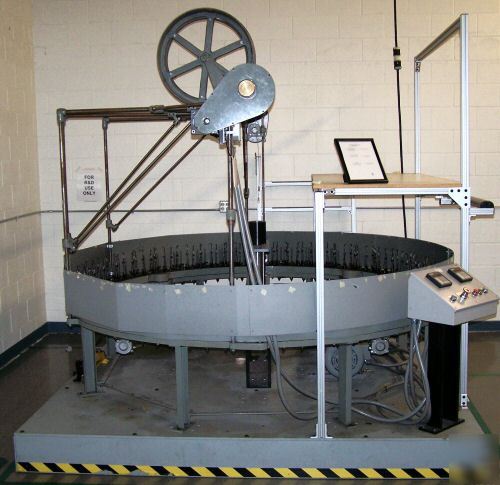

This would be a great Research or Production System New in 2001 Model B10.144.21 Manufactured 11/01 #1 If needed We could provide a frame that would allow for horizontal operation Variable Speed DC Take up Reel This Braider is in excellent condition Main track is greased not oiled so product stays clean You can braid for example 8, 16, 24, 32, 64, 144 See http:// /B10MaypoleBraider.asp for more info about This WARDWELL 144-C carrier braiding machine was used in R&D by a medical device manufacturer and is in excellent condition Shows very little use. Additional Items included:1. The platform measures 8 feet by 8 feet and has onboard Hydraulic system to deploy Wheels for moving.2. New England Butt DC take up reel for constant tension.3. Catwalk with ladder.4. Long power cord.

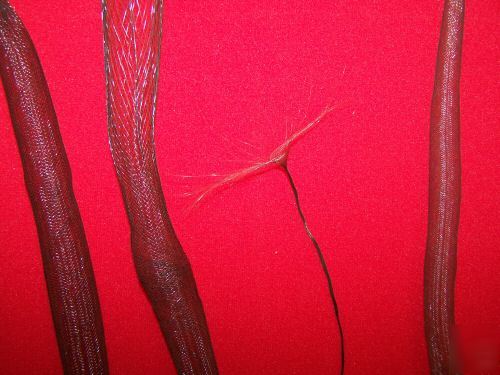

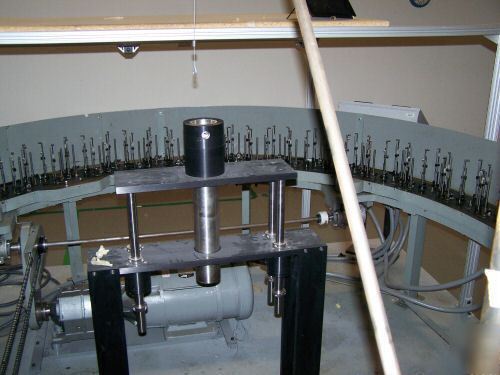

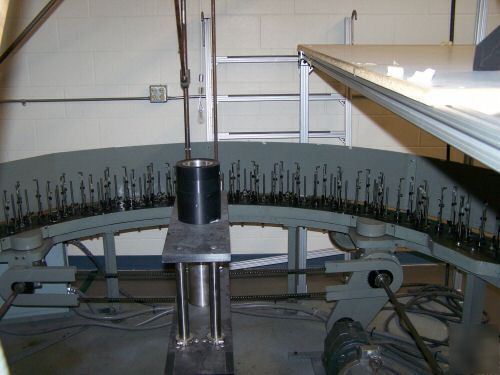

The WARDWELL 144 carrier braiding machine is designed to braid (knit) fibrous material into cylindrical, but not necessarily symmetric, shapes over a mandrel form. The braiding machine is capable of applying 144 continuous strands of material simultaneously onto a mandrel.

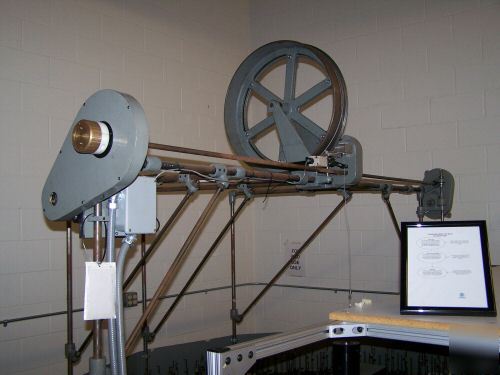

During the braiding operation, the braiding machine remains stationary while a mandrel form (cable rope or other rod) is drawn vertically and over braided and then wound on to a take up reel.
Video of this operating is available (Very large file)
Any Questions Call or email or Stop In
