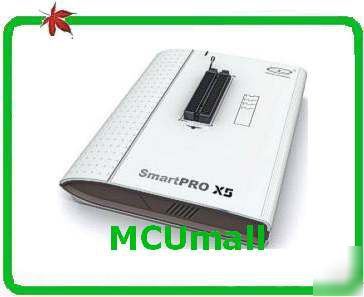

Ppg-smartpro-001 smartpro X5 usb universal programmer
-High Performance: support 10000+ devices and growing
-SmartPRO X5 Outstanding Professional Level USB Universal Programmer
-Programs high-density flash memory devices at near theoretical minimum programming time.
-Design for versatile multi-applications: choose the optimum mode for the programming demands.
* Auto mass-program: The unique 'Auto-Sense' function will sense the inserted device and program the device properly without touching any key..
* Stand PC hosted operation for R&D and engineering.
* ICP download mode: Smart X5 directly supports in-circuit programming using a dedicated ICP connector and an included cable. ICP mode is ideal for design engineering and low-volume production.
-Flexible, Reliable Support for the Latest Devices and Packages
Support devices with low voltage devices down to 1.8V(Vdd). Most of programmable devices in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA package types can be programmed on a default DIP48 socket or through an appropriate ADAPTER/CONVERTER.
* Includes high speed CPU and high-speed FPGA driven hardware for ultra-fast programming.
* Use the USB2.0 port to connect to PC: A faster, more reliable communications interface between the programmer and the host PC.
-Wide IC Coverage: Low-voltage programming supports voltages down to 1.8V allowing to program the newest devices on the market.
-High Reliability: Self-Test system check hardware status any time.
-Continuity Test: Pin continuity and wrong chip insertion check prevent chips from accident damage.
- The programming software has a easy-to-use graphical interface. Friendly operation interface combines many powerful functions with ease to use.
-Project manager save option: project minimizes the whole process of device selection, file loading, device configuration setting, operation option etc. to a single step.
-Device Check: Give a warning automatically according to the actual ID read when a mistake type is selected.
-CRC Verify: File CRC check and detect large file offset automatically.
-Algorithm Updates: SmartPRO X5 provides universal, highly flexible device programming support for today’s memory, microcontroller and logic devices from all the major manufacture. New device support software updates regularily.
Attaching of more SmartPRO X5 programmers to the same PC (through USB2.0 port) is achieved a powerful multiprogramming system with as much chips supported as SmartPRO X5 can and without obvious decreasing of programming speed. It is important to know, there is a concurrent multiprogramming - each programmer works independently and each programmer can program different chip, if necessary.
-Ideal for Engineering as well as Production Environment
Wide device covering range, flexible future expansion capability help users to achieve challenging time-to-market goal.
-SmartPRO X5 universal programmer
-Software on CD-ROM & User manual (electronic version)
