Comserver serial port (ttl) to ethernet module N100PT

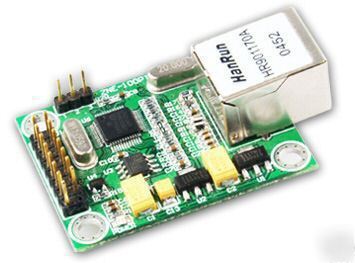

Embedded Serial Port (TTL) to Ethernet module N100PT
N100PT is an embedded Ethernet module which integrated with TCP/IP stacks, by using it, user can easily access to the Ethernet with their embedded products; and since it’s a complete and ready Ethernet module, it can save the development time and research fees on this kind of device, shorten the development period, and make your product more competitive than others.
Serial (TTL) to 10M Ethernet, and the maximum baud rate for serial is 115200 bps;
Can be easily configured by Web browser and Windows utility
With TCP Server, TCP Client, UDP, Real COM, Group broadcast, TCP Auto working modes
Supports DHCP (Dynamic Host Configuration Protocol); or static IP captures
10M Ethernet connector (Pin-out)
1.5KV electromagnetic isolation
Serial port TTL mode, Baud rate 300~115200 bps
Free verification for serial port
Serial port data bit bit5, bit6, bit7, bit8 configurable
Serial port stop bit bit1, bit2 configurable
Supports TCP/IP protocols, including ETHERNET, ARP, IP, ICMP, IGMP, UDP, TCP, HTTP, and DHCP.
The selectable working modes are: TCP Server, TCP Client, UDP, Real COM driver, Group broadcast, TCP Auto. The Group broadcasting address, working port, destination IP and port are all configurable; it also supports the Pair Connection working mode.
Provides 5 controllable I/O ports, which can be controlled by Web page or TCP; the controlling ports for them are also configurable.
Provides management software for Real COM driver mode. By using the software, the serial port parameters can be modified dynamically and the device is working fully as a virtual serial port
Provides data distribution for Group broadcast mode to achieve the multiple communications, simply upgrades your RS485 network to the Ethernet.
Provides a serial port starter bit and ending bit separate packaging feature
The module can be configured by a configuration tool, ZnetCom Utility for Windows 98/me/NT/2000/XP.
With additional function libraries for configurations; quite convenient for user to use VC, VB, Delphi or C++ Builder to develop their applications.
Can be setup by a web browser.
Low power consumptions, the maximum working current are 38mA.
Temperature for storage: -25C~85C.
