> .004UF @ 630 volts "orange dip" film capacitors qty=32

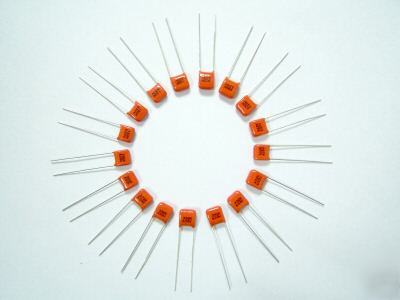

.004UF @ 630 volts "orange dip" film capacitors qty=32
* ...Always a Money Back Guarantee
CAPACITOR Specifications and Features
* Premium quality PPN Polypropylene Metal-Foil construction.
* High stability of capacitance abd DF versus temperature and frequency.
* Excellent replacement for paper/wax capacitors in tube radios/amps/audio systems. Also, Telecommunication equipment, industrial electronics and general electronics equipment.
* Rated Voltage: 630 Volts DC
* Epoxy dipped Orange Dips for superior heat, moisture and solvent resistance.
* Compact body size for easy installation in tight spaces: 9mm wide, 11mm high, 5mm thick
* EXTRA Long (35mm) leads made of solder-plated oxygen free Copper (OFC) wire for easy "under chassis" installation and excellent solderability.
* Withstand Voltage: 250% of Rated Voltage (ie 1575 volts) for 1~5 seconds.
* Operating temp. range :-40 to +85 C.
* Capacitance tolerance: +/- 10%.
* High pulse rise (dv/dt) and suitable for large current circuits.
* Capacitance Range: All sizes 0.001uF thru 0.0082uF (for over 0.0082 uF our Metallized Film capacitors are recommended for tube radio/audio/amp applications)
* Low dissipation factor and high insulation resistance
* Dissipation Factor: 0.08% max. at 1KHz, 20C
* Insulation Resistance: >30,000Mohm
* Excellent stability for High Frequency / High Current / Timing Circuit / Temp. Compensation Applications.
high_voltage_film_capacitors
schematic_diagrams Capacitors & Schematics
Name & Address: David Cantelon, 6 Ferncrest Gate, Scarborough, Ontario, Canada, M1W 1C2
