Serial lcd kit #117 - basic stamp or microchip pic

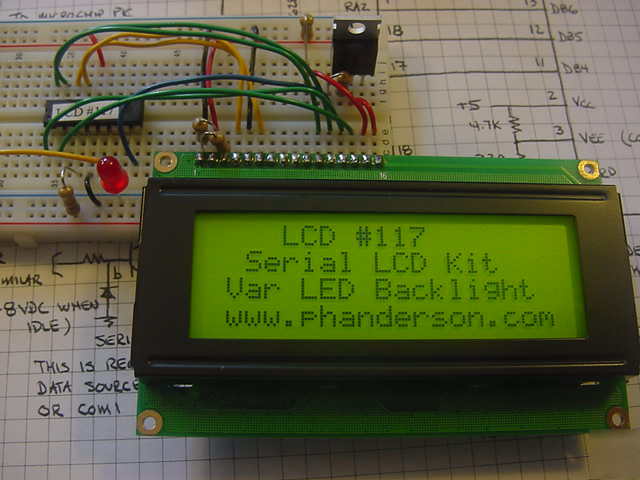

This listing is for the Serial LCD Kit #117 only. The LCD #117 is a kit, suitable for assembly on a solderless breadboard.
This listing does not include an LCD. It does not include a PCB.
If you would like a top notch standalone serial LCD at an affordable price see;
* ModernDevice.Com - Paul Badger
Note that the LCD #117 Kit operates at 9600 baud.
The LCD #117 Kit provides an interface between a Microchip PIC, Parallax Stamp, BX24 or similar and an LCD having an HD44780 interface. I believe it is the most powerful serial to LCD unit available on the market and the least expensive. I have sold several thousand over the past four years.
* 9600 Baud TTL Interface - Non Inverted. For operation with a PC or similar using RS232 levels a MAX232 or similar is required.
* Programmable LCD Geometry (2X16, 2X20, 2X24, 2X40, 4X16, 4X20) - saved in EEPROM.
* Eight User Defined Characters (saved in EEPROM).
* Programmable Tab Size (saved in EEPROM).
* Programmable Cursor Style (saved in EEPROM).
* Output for "beep" function. (The interfacing audible device is not included with this kit).
* Rich Cursor Instruction Set including, clear LCD, clear current line, cursor to defined line, cursor to defined column, cursor up, down, back, foward, new line and "beep".
* 3 block wide and 4 block wide "big number" capability.
* Customized splash display screen.
* Ouput and power transistor for varying the intensity of an LED backlight.
* Four addressable TTL level outputs (15 mA)
* Programmed PIC Processor (18-pin DIP).
* 4.7K Resistor for Processor Reset Terminal
* 330 and 4.7K Resistor for biasing contrast on the interfacing LCD.
* TIP-41 NPN transistor and 330 Ohm base resistor for controlling LED backlight..
* Lengths of 22 awg solid wire (four colors) suitable for use with a solderless bredboard.
Again, please note that this listing does not include an LCD.
For additional details, please see my web site.
