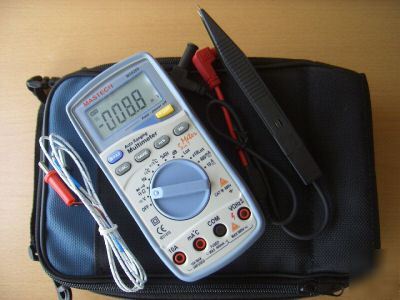

Mastech MS8209 5-in-1 multimeter, lux,sound,temp,rh,
"5-IN-1 Auto Ranging Digital Multimeter"
Luxmeter, Thermometer, humidity meter, Soundlevel Meter, Frequency, Capacitnace & AV-Ohm Multimeter
Industrial, Lab / Home DIY Measurements
HIGH ACCURACY & RELIABILITY WITH WIDE MEASUREMENT RANGE !!!
MULTI-FUNCTIONS , COMPACT & ALL-IN-ONE DESIGN SUITABLE FOR VARIOUS MEASUREMENTS !!!
"FREE GIFT NOW WITH SMD TWEEZER"
. All-in-One Design includes 14 functions with 39 ranges.
. Main Measurements : Illuminance ( Lux ) , Sound Level ( dB), Humidity (%), Temperature ( Degree C ), AC/DC Volt & Current, Resistance, Capacitance, Frequency / Duty cycle, Diode & Continuity
. Easy Operate. Lux, Sound level and Humidity Sensors are at the meter top. Detachable thermo probe be connected as required
. Both Auto range and Manual range
. Overrange protection for all ranges
. Max Voltage between terminals and earth ground : 300V DC or RMS AC
. LCD Display / Backlight, Max. shown value : 3999 counts max
. Polarity Indication : Indicates negative polarity
. Fuse protection : F 500mA /250V
. Power Supply : 9V Battery. Low battery indication
. Protection case to reduce accidental shock & drop impacts
. Light : 1- 4,000 Lux / 40,000 Lux, +/- 5% + 10 digits
. Sound Level : 35 - 100dB, +/- 3.5%
. Humidity : 30% - 90% RH, +/- 5%RH
. Temperature : -20C - 400C , +/- 3 to 5% + 5 to 8 digits ( at 0.1 C range )
-20C - 1000C, +/- 1 to 5% + 3 to 5 digits (at 1 C range )
. DC Volt : 4mV / 4V / 40V / 400V / 600V , +/-0.7% + 2 digits
. AC Volt : 4V / 40V / 400V / 600V, +/- 0.8% + 3 digits
. DC Current : 40mA / 400mA , +/- 1.2% + 3 digits . 10A , +/- 2% + 10 digits
. AC Current : 40mA / 400mA , +/- 1.5% + 3 digits . 10A , +/- 3% + 10 digits
. Resistance : 400 / 4K / 40K / 400K / 4M , +/- 1.2% + 2 digits, 40 M Ohm, +/- 2% + 5 digits
. Capacitance : 4n / 40n / 400n / 4u / 40u / 200u, +/-3% + 3 digits
. Frequency : 10 / 100 / 1k / 10k / 200khz, +/- 2% + 5 digits,
. Duty Cycle : 0.1% - 99.9%, +/-3.0%
. Accessories : Thermo probe ( 200 C max ), Test leads, Operation Manual, Protection case
. Dimension : 158mm(L) x 78mm(W) x 39mm (D)
. Weight : Approx. 250g ( including battery )
. Options : Thermo probes for 500 C or 750 C suitable for liquid measurement
QUANTITY DISCOUNT AVAILABLE !!!
Notice ; Color may various subject to the availability from stock.
If the item damaged upon received, please inform by e-mail immediately with picture within 5 days. After the investigation, we decide to the replacement.
- Regret that not accept Personal Check; US local Postal Order.
Don’t hesitate to ask if any queries
