AB1AC24GE telemecanique end barrier for terminal blocks

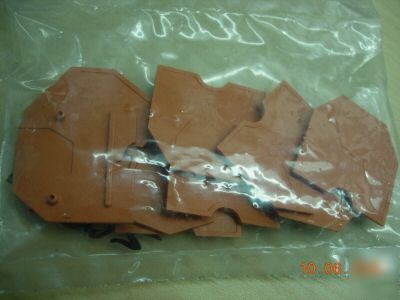

AB1AC24GE Telemecanique End Barrier for Terminal Blocks. These end barriers are orange in color and are designed for IEC type Terminal Blocks. They are completely compatible with Telemecanique's AB1VV Box Lug Blocks. The barriers are brand new in their factory sealed bags and they have never been used.
Square D > On-line Catalog > Products > Terminal Blocks > IEC Type Terminal Blocks
Box Lug Type Block Solid or Stranded Copper Wire 22–12 AWG
Box Lug Type Block Solid or Stranded Copper Wire 22–10 AWG
Box Lug Type Block Solid or Stranded Copper Wire 22–8 AWG
Box Lug Type Block Solid or Stranded Copper Wire 16–6 AWG
Box Lug Type Block Solid or Stranded Copper Wire 12–4 AWG
Box Lug Type Block Solid or Stranded Copper Wire 10–2 AWG
Not required for these blocks.
Box Lug Type Block Solid or Stranded Copper Wire 6–2/0 AWG
Not required for these blocks.
Box Lug Type Block Solid or Stranded Copper Wire 2/0–350 kcmil
Not required for these blocks.
a Orders must specify standard package quantity (Std. Pack) or multiples of that quantity. b These maximum current values assume the use of insulated copper conductors with 75 ° C temperature rating and are calculated based on NEC Article 310, Table 310-16. In most cases this value is the maximum ampacity of the wire which has the greatest current carrying capacity. The actual allowable current for a particular application is dependent upon the size, insulation class and other characteristics of the wire used. The UL rating are shown. The CSA rating may be higher or lower. Refer to the catalog for CSA ratings. c One end barrier is required for each assembly of like blocks.
For track and accessories page 22-16
For additional information, reference Catalog #9080CT9901R5/02.
