High voltage, 1200PF, .0012UF, 30KV dc capacitor tesla

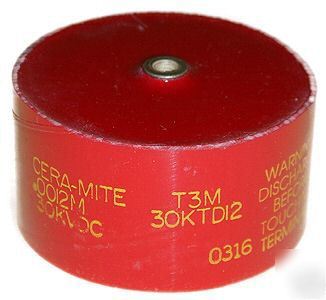

BRAND NEW, .0012uF @ 30,000VDC, CAPACITOR!
PERFECT for LIFTER, COCKCROFT WALTON MULTIPLIER OR MARX GENERATOR
CERA-MITE BRAND, MADE in USA, BY VISHAY
KT SPECIAL PURPOSE TYPE, EIA CLASS I, P/N 30KTD12
• High Voltage Power Supplies, CRTs, Lasers.
• Greater Capacitance Stability.
• Features Low DF 0.2% and Low Heating, Low DC & AC Voltage Coefficient.
• Tighter Tolerance On Capacitance. +/- 20% N4700 Tempco
Operating Temperature Range: -30°C to +85°C
Storage Temperature Range: -40°C to +100°C
Dielectric Strength: 150% of rated voltage, charging current limited to 50mA.
Insulation Resistance: 200,000 megohms or 1000?Fminimum at 25°C.
Power Dissipation: Limit to 25°C rise above ambient, measured on case.
