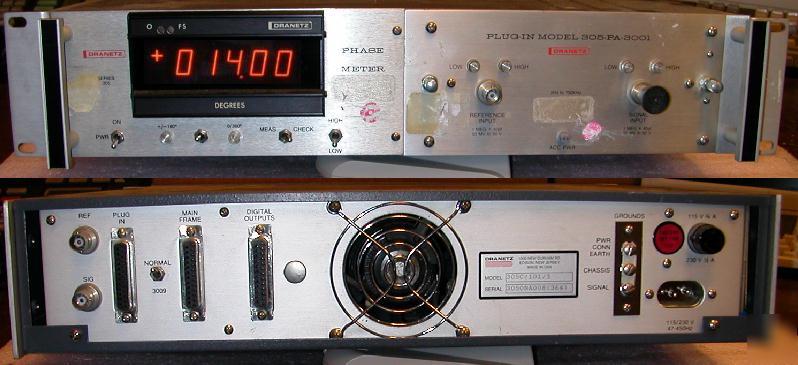

Dranetz 305C phase meter w/ 305-pa-3001 plug-in.
Dranetz 305C Phase Meter w/ 305-PA-3001 Plug-In.
Description: The Dranetz 305C Phasemeter Mainframe features a frequency range of 2 Hz to 11MHz (plug-in dependent), digital readouts and outputs, 1 Mohm input impedance, and high overvoltage capabilities. Features include:
Angle Range: 0.00° to ±180.00° or 0.00° to +360.00° manually or automatically selected
Analog Output Range: -1.8000 to +3.6000 VDC corresponding to measured angle; 10.0 mVDC per degree
The 305-PA-3001 Plug-In features:
Allows the 305 Phasemeter to have special features
No operating controls or adjustments
0.05° accuracy independent of input voltage
2 Hz to 700 kHz frequency range
Input voltage range from 10 mV to 300 V rms to 10 kHz and to 50 V rms up to 700 kHz
compatibility with Textronix probes
Includes front panel lamps to indicate when either input signal is below 50 mV or above 50 V rms
Please feel free to email with any questions.
