Allen bradley kinetix 2000 complete set 2093-AC05-MP1
In our Store is an Allen Bradley Kinetix 2000 Series Controller & Servo Motor Set
* Description: Kinetix 2000 3kW/1A Integrated Axis Module
* DC Link Input: 325VDC 9.67ADC(3PH)/6.42ADC(1PH)
* Main Input: 170-264VAC 11.66A(3PH)/10.95A(1PH) 50-60Hz
* Control Input: 170-264VAC 1.25Arms@230VAC 1PH 50-60Hz
* Buss Output: 325VDC 9.67ADC(3PH)/6.42ADC(1PH)
* Motor Output: 0-230Vrms 3PH 0-550HZ 4.24Apeak@8kHz
* Control Output: 240-425VDC 1.25A
* Description: Kinetix 2000 Integrated Axis Module Power Rail
* Control Input: 240-425VDC 2.5A

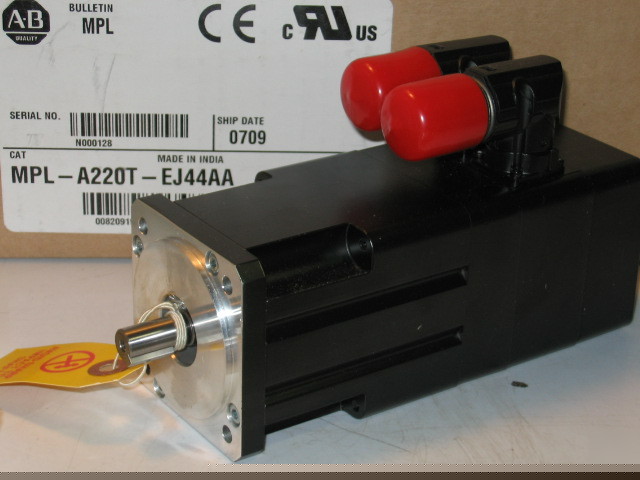

* Description: Kinetix MP Series Inverter Duty AC Servo Motor
* (2) 2090-SCEP1-0 Series A Fiber Optic Link Cables
* (1) 2090-XXNFMF-S09 Connecting Cable
* (1) 2090-XXNPMF-16S09 Connecting Cable
* (1) Set of Instructions for the Integrated Axis Module, Power Rail, Fiber Optic Cable Installation and Connecting Cables
For more information on the Kinetix 2000 System click here
(Please click on an image to enlarge it.)
