14X12X7 fiberglass 110 vac weatherproof nema enclosure
14x12x7 Fiberglass 110 VAC Weatherproof NEMA Enclosure
This is for a Brand New 14" x 12" x 7" Fiberglass 110 VAC Weatherproof NEMA 4X Enclosure with Equipment Mounting Plate
* Remote Wireless LAN WiFi equipment installations
* Indoor and outdoor installations
* Rapid deployment installations
* Protection of equipment from theft or damage
* Molded fiberglass reinforced polyester enclosure
* Stainless steel quick release latches with padlock hasps
* NEMA Type 4X / IP65 rated*
* Surge protected 110 VAC outlets
* Mounting plate can accommodate WLAN equipment from Cisco, Symbol, D-Link and more...

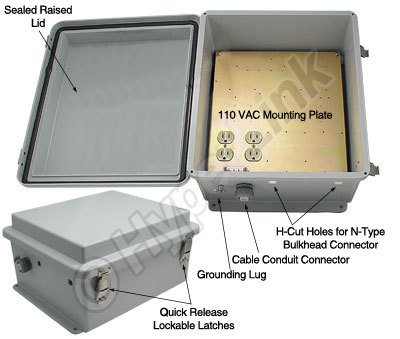

The box is a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications. Constructed from molded fiberglass reinforced polyester, it is well suited for high temperature or corrosive environments. The mounting flange allows it to be wall mounted as well as on a flat surface. The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The raised lid is fully gasketed. The enclosure material is UV stabilized and comes in machine tool gray.
The aluminum mounting plate has provisions to mount WLAN equipment from Cisco, Symbol, D-Link, HyperLink and more. The plate features four standard surge protected 110 VAC outlets and a terminal strip to supply power to internal equipment.
Surge protection is provided as a standard feature on the internal AC outlets. In addition, the unit can accept up to two optional bulkhead-mount N-Type lightning protectors to protect the coaxial cable runs.
Enclosure Material: Fiberglass Reinforced Polyester
Enclosure Color: Machine Tool Gray
Outside Dimensions (Max): 15.5 x 13.5 x 7.7 inches (39.3 x 34.2 x 19.5 cm)
Inside Dimensions: 13.5 x 11.5 x 5.8 inches (34.3 x 29.2 x 14.7 cm)
Cable Feed: 1/2" Cable Conduit Conenctor
*Note: Enclosure ports (Cable conduit connector and N-type holes for lightning protectors or connectors) must be properly sealed to maintain NEMA 4X / IP65 rating.
This enclosure is also available with thermostat-controlled heat and/or cooling. A vented version is available as well.
All items are brand new and carry full manufacturer's warranty.
