Advantech 133MHZ isa sbc w/ video, network, & pc/104 ex

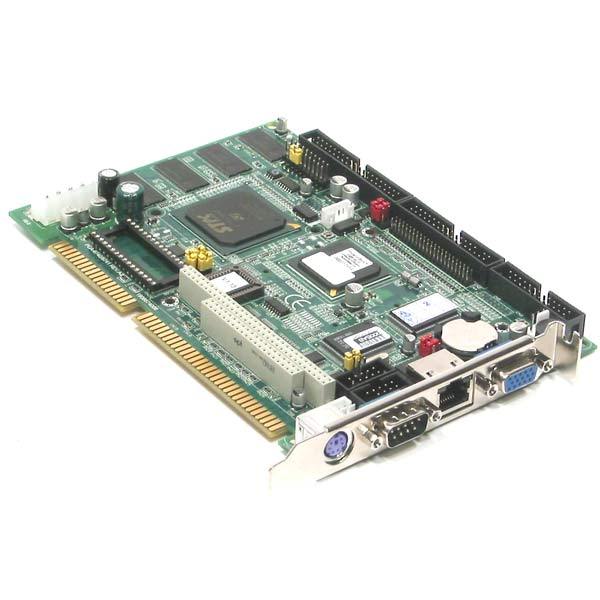

Advantech 133MHz ISA SBC w/ Video, Network, & PC/104 Expansion
* CPU Onboard low power STPC Elite 133 MHz
* 2nd Cache Memory On processor
* System Chipset STPC Elite embedded
* BIOS AWARD 256 kbit Flash BIOS
* System Memory On board 32 MB SDRAM
* SSD DiskOnChip. 2000 Slot (DOC not included.)
* Watch Dog Timer 1 ~ 62 sec, System reset or IRQ11
* Expansion Interface 1 x 16-bit ISA slot, 1 x PC/104 connector
* Battery Lithium 3 V/196 mAH
* 2x USB ports USB 1.1 compliant
* IrDA 115 kbps SIR, IrDA 1.0 compliant
* CRT mode: 1280 x 1024 @ 16 bpp (60 Hz), 1024 x 768 @ 16 bpp, 800 x 600 @ 16 bpp
* LCD mode: 1280 x 1024 @ 16 bpp (60 Hz) 1024 x 768 @ 16 bpp, 800 x 600 @ 16 bpp
* LCD Interface Up to 36-bit TTL for TFT LCD
* Dimension (L x W) 185 x 122 mm (7.3 x 4.8)
* Weight 0.27 kg (weight of total package)
* Operating Temperature 0 ~ 600 C (32 ~ 1400 F), operation
* Operating Humidity 0% ~ 90% relative humidity, non-condensing
* Power Supply Voltage +5 V 1 5%
* Power Consumption Max : 5 V @ 2 A
Specification URL: http:// .tw/products/ISA-Elite-Slot-PC-SBC-with-133-MHz-CPU-32-MB-VGA-LCD-LAN-DOC-and-PC-104/mod_1-239ZW8.aspx
* We also accept Money Order & Cashier's Check
*Please see listing above for the warranty that applies to this item.
7-day DOA Warranty: These items are guaranteed not to be Dead On Arrival. When an item carries a 7-day DOA warranty, you have 7 days to contact us for a replacement or refund for a defective product. We can not warranty compatibility with your equipment or warranty items that have been installed in your computer and or altered once they have left our warehouse.
30-day Warranty: When an item carries a 30-day warranty, you have 30-days to contact us for a replacement or refund for a defective product. We can not warranty compatibility with your equipment or warranty items that have been installed in your computer and or altered once they have left our warehouse.©
