IOWA CITY MODERATED FORSALE NEWSGROUP   >   Machinery   >   Agilent E5515C wireless communications test set

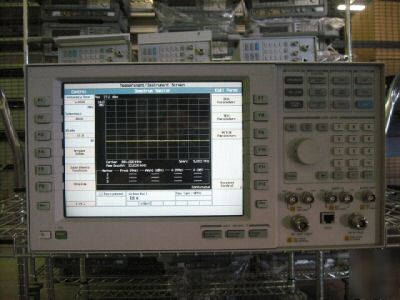

Agilent E5515C wireless communications test set


IP ADDRESS: 169.254.5.146 / NAME: DIRECT CONNECT
OPTIONS INCLUDED: 002/003/AND E1991B
INCLUDES THE FOLLOWING APPLICATIONS:
E1985B, B.04.16, GSM/GPRS_AMPS/136_WCDMA **
E1960A, A.10.72, GSM Mobile Test
E1960A, A.11.06, GSM Mobile Test
E1961A, A.08.12, AMPS/136 Mobile Test
E1962B, B.07.15, CDMA 2000 Mobile Test
E1963A, A.05.16, WCDMA Mobile Test
E1966A, A.02.15, 1xEV-DO Terminal Test
E1968A, A.02.10, GSM/GPRS Mobile Test
E1968A, A.03.32, GSM/GPRS Mobile Test /EGPRS
E1985C, C.02.18, GSM/GPRS_CDMA
E1985E, E.01.15, CDMA 2000_1xEV-DO
Recent additions to the 8960 extend its use into the design and development of wireless devices. Use the new lab applications to verify and troubleshoot your wireless designs by using powerful protocol logging features in addition to the extensive parametric testing.
The E5515C Test Set measures 222 mm high, 426mm wide and 625 mm deep and weighs approximately 30 kg depending on the hardware option configuration.
* Supports W-CDMA, HSDPA, cdma2000, 1xEV-DO, 1xEV-DO Release A, IS-95, GSM, GPRS, EGPRS, TIA/EIA-136, and AMPS mobile phone testing
* Remotely controllable through GPIB interface
* 292 to 2700 MHz frequency range
* VSWR <1.14:1 400 to 1000 MHz
FOR FURTHER INFORMATION PLEASE CONTACT TERRY AT (***)-886-4817 OR EMAIL SALES@ITESTX.COM!!
