Optical filter dichroic 650DRLP 26X36 beamsplitter @45
My Stores LogoCheck out my other items!
This filter is NOS from an instrument manufacturer. The filter separates a band of Deep Red by reflecting it at right angles to the incidence light, while transmitting nearly all of the Blue Green and Red. (A secondary band of Blue is reflected).
The filter makes a very good beam separator of two emission signals.

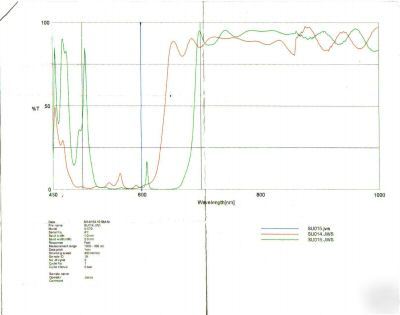

filter specifications follow: Reflection band 470 to 630 with average of 98%, Transmission band 660 to 1000+ nm with an average of >90%, Size 26X36mm mm, Substate material is fused silica. Original cost $150
For a most comprehensive assortment of filter solutions, follow the link at my store, under "Technical Data" to the Omega 'Build A Filter' tool. Millions of potential matches are available. Prices are very reasonable if you indicate "cosmetic seconds acceptable".
For much more information on interference filters and their applications please visit my blog at www.bjomejag.squarespace.com/ . If you have ideas for additional topics to elaborate on, do leave a note.
