Technology automation 5SLOT chasse controller +3 cards

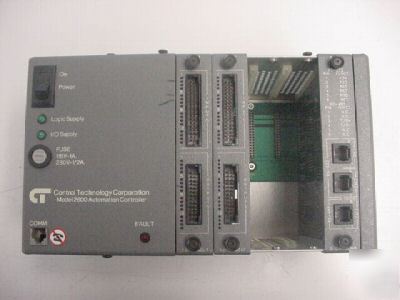

CONTROL TECHNOLOGY AUTOMATION 5 SLOT CHASSE CONTROLLER MODEL 2600 WITH 3 CHASSE CARDS:
SERIAL # 05941 / FUSE 115V-1A ( 230V-1/2A )
SERIAL # FOR THE BOARD 100-05941 ( 2600XM TURBO )

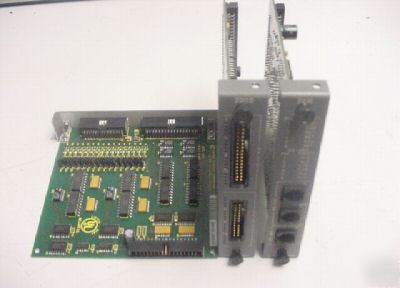

CHASSE CARDS ( TWO CHANNEL COMM MODEL 2216 ) ( 2 MODEL 2203 16IN / 16OUT )
The 2600 Series Automation Controllers are high performance control systems which
accept a wide range of plug-in modules to accommodate specific applications. These
controllers, capable of the combined control of machine sequencing, motion control,
networking and analog data acquisition, use advanced technology to significantly
increase performance and decrease applied costs. Supplied in an easily panelmountable
format, the 2600 Series accepts a variety of modules, including:
Models 2201, 2202, and 2203 DC Input and Output Modules
Model 2204 Thumbwheel/Display Module
Models 2205 and 2206 Single or Dual-axis Stepping Motor Modules
Models 2207 and 2209 Analog Input and Output Modules
Model 2208 High Speed Counter Module
Models 2210 and 2211 AC Input and Output Modules
Model 2212 8-channel Relay Module
Models 2213 and 2215 Precision Analog Input and Output Modules
Models 2214 and 2219 Dual-axis Servo Control Modules
Model 2216 Dual Channel RS-232 Module
Model 2217 Ethernet Communications Module
Model 2218 16-in/16-out Customization Module
The performance of the 2600 Series is considerably enhanced through the use of a
highly-integrated 16 bit processor, providing response times as fast as 1ms. This
performance level, combined with the controller’s 24K user memory capacity and
extended I/O and step capacities, make the 2600 Series appropriate for applications
usually requiring systems costing several times more.
Programming is accomplished using CTC’s “Quickstepâ„¢â€, a powerful automation
language which dramatically reduces programming time. Software capabilities
include the ability to simultaneously run up to 28 independent tasks, and the
instruction set includes high-level motion control commands, as well as time delay,
input monitoring, math and data manipulation commands. These commands make
full use of such internal resources as the controller’s Non-volatile and Volatile
Registers, user-definable Data Table, Input-linkable Counters and 32 Flags.
The 2600 Series also offers strong communications and networking (Ethernet)
capabilities, making this controller family a powerful ally for those involved in
demanding automation projects.
