24CXX, 93CXX and 25XXX serial e-eprom programmer

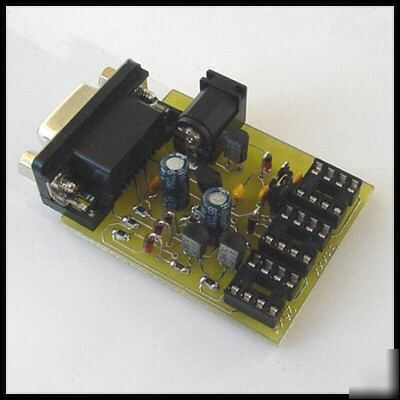

24Cxx, 93Cxx and 25xxx Serial Eeprom programmer
This programmer can be easily adapted to work with
Technical characteristics of the programmer:
* Support 24C01, 24C02, 24C04, 24C08, 24C16 I2C Bus EEPROM
* Support 24C32, 24C64, 24C65, 24C128, 24C256, 24C512 I2C Bus EEPROM
* Auto detect 24XX EEPROM capacity
* Support 24C325 and 24C645 I2C Bus EEPROM
* Detect the bank roll over capability of some old 24XX EEPROM
* Support 93C06, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86 Microwire EEPROM (C and LC series, the CS serie is not supported)
* Support 93C13 (as a 93C06) and 93C14 (as a 93C46) Microwire EEPROM
* Access microwire eeproms in either 8 and 16 bit organization
* Support 25010, 25020, 25040 SPI EEPROM
* Support 25080, 25160, 25320, 25640, 25128, 25256 Big SPI EEPROM
* Support 25642 and 95640 Big SPI EEPROM
* Read/Write Intel hex format file as well as raw binary file
* Read/Write Motorola S-record format file
* Features a custom EEP format file to store the EEPROM characteristics, an editable comment and memory content all together with CRC
* Enhanced buffer edit, text and hexadecimal
* Work with Windows95, Windows98, WindowsME, Windows2000, WindowsXP and Linux*
* Script files for batch programming
* Improved speed with WinNT and Win2000 with a driver for direct I/O.
Connects do the serial port of your PC
The programmer need external supply 9-12V, center positive.
PonyProg and ICprog compatible.
This item is assembled, tested and in working condition.
Item will be sent out in the order of
Please allow about 10-12 days for delivery
about 12-15 days for delivery to
