MAX3232 MAX232 RS232 ttl convertor adapter 3.0V/5.0V
This converter provides two way RS232 serial communications signal conversion between the TTL output (from an OOPic or other PIC) to and from a personal computer RS232 serial COM port. This converter can be used on any Micro controller/PIC which has TTL serial communications that needs to be converted to RS232.
This converter uses MAX3232 for the conversion, therefore, you can power it from 3.0V to 5.0V.

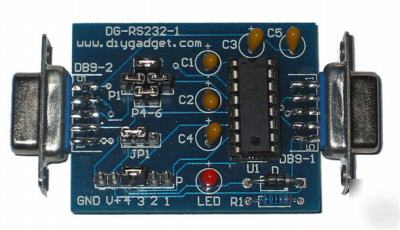

There are two DB9 female connectors on the converter. The onboard jumpers allow you to have two working converters without handshaking or one converter with handshaking. Please see the picture below for details:
