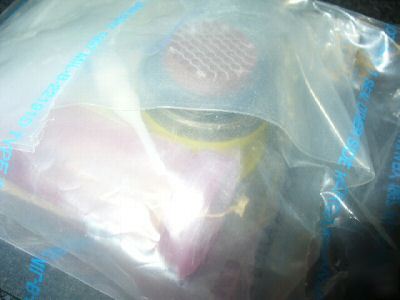

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 0.766 INCHES MAXIMUM
OVERALL DIAMETER - 1.281 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.938 INCHES
NOMINAL THREAD LENGTH - 0.219 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG - 0.0 AND 100.0 AND 128.0 AND 228.0 AND 265.0
CONTACT POSITION ARRANGEMENT STYLE - CJAH 16-35 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 55 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS27473 GOVERNMENT STANDARD
III OPERATING TEMP RATING - -65.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL AND WEIGHT - 0.055 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-38999
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS27473T16B35S
