Tol-o-matic 24.75" rodless air slide band cylinder
TOL-O-MATIC 24.75" RODLESS AIR SLIDE BAND CYLINDER

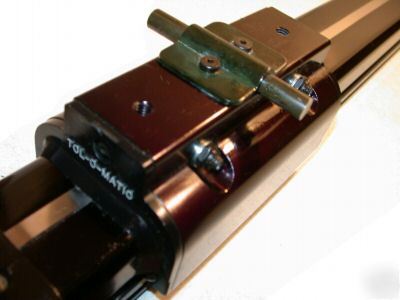

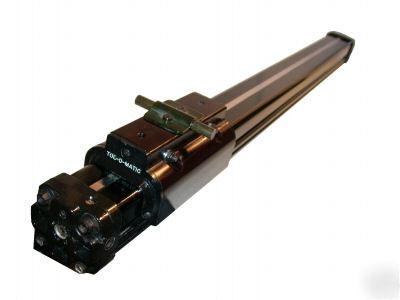

This is a Tol-O-Matic Pneumatic Rodless Band Cylinder, Pt .No. BC2#180707, Conf # BC215 SK24.75 FM2 FL with 24.75 Inches of Stroke and a 1 1/2" Bore.
. BC2 band cylinders are designed specifically for large load capacity.
This series of cylinders can handle high off-center loads with consistently smooth motion.
Lowest possible breakaway pressure
Highest bending moment capacity for bore sizes
Pre-loaded recirculating ball bearings for minimal carrier deflection when subjected to loads
Cost-effective alternative to auxiliary rail systems
The Ball-Bearing System utilizes precision rails attached to the cylinder tube with fasteners and T-Nuts. The resulting system, holds bearing way firmly in place for smooth bearing ride and lowest possible breakaway. It offers wear resistance with repeated accuracy.
The Patented load-bearing system rides on bearing rails for smooth load movement with minimal play, resulting in one of the highest bending moment ratings for rodless cylinders in its class.
The Patented wedge tube design guarantees that the raceways are parallel which insures a preload that is consistent throughout the length of the cylinder. T-slot grooves are accessible on 2 sides of cylinder tube allowing for the insertion of T-Nuts for mounting flexibility.
T-slot Nuts provided on the underside of the cylinder can be used to mount the cylinder directly to a surface or used to mount tube supports if desired.
Adjustable cushions for smooth deceleration are standard.
This is a very expensive and precision air slide that measures 37" overall - rail measures 2 1/4" High X 2 1/2" Wide and slide is 3 1/2" x 6" long.
For additional informations see:
http:// /products/item_detail.cfm?PAGE_ID=86
I will fully guarantee this great unit.
