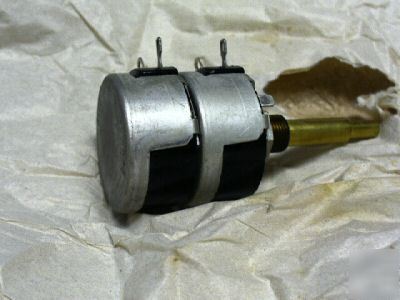

Resistor,variable,wire wound,precision
ELECTRICAL RESISTANCE PER SECTION - 5.000 KILOHMS 1ST SECTION, 100.000 OHMS 2ND SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 2ND SECTION
FUNCTION CONFORMITY PER SECTION - SINGLE SECTION INDEPENDENT LINEARITY
FUNCTION CHARACTERISTIC PER SECTION - SINGLE SECTION LINEAR
POWER DISSIPATION RATING PER SECTION IN WATTS - 2.0 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - ANY ACCEPTABLE
BODY DIAMETER - 1.250 INCHES NOMINAL
BODY LENGTH - 1.344 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.375 INCHES NOMINAL
ACTUATOR TYPE - DUAL CONCENTRIC
SHAFT DIAMETER - 0.187 INCHES NOMINAL
SHAFT LENGTH - 1.500 INCHES NOMINAL
NONTURN DEVICE LOCATION - AT 3 OCLOCK AND AT 9 OCLOCK
NONTURN DEVICE RADIUS - 0.531 INCHES NOMINAL
MOUNTING METHOD - STANDARD BUSHING
SCREW THREAD SERIES DESIGNATOR - UNEF
SCREW THREAD DIAMETER - 0.375 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH - 32.0
TERMINAL TYPE AND QUANTITY - 6 TAB, SOLDER LUG
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 2.844 INCHES NOMINAL
III OVERALL DIAMETER - 1.250 INCHES NOMINAL
DESIGN CONTROL REFERENCE - 3125-01-614A
