Latching relay nais 5VDC dual coil dpdt 10-pin dip pkg

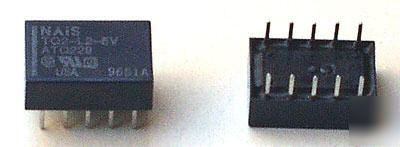

5VDC 40MA 125 OHM DUAL COIL DPDT RELAYTHE NAIS PART NUMBER IS: TQ2-L2-5V
THE RELAY COMES IN A 10-PIN DIP PACKAGE 0.6"(L) x 0.4"(W)
IT'S CONTACTS ARE RATED AT 30VDC @1A & 125VAC @0.5A
BOTH COILS WILL OPERATE DOWN TO 3.75VDC VERY EASLY!
THESE RELAYS WERE USED BY USE IN OUR 434MHz REMOTE CONTROL RECEIVERS
CONVERTING 4 CHAN MOMENTARY RECEIVER'S INTO 2 CHAN LATCHING RECEIVERS!
I AM SELLING OFF 200PCS OF THIS GREAT RELAY ALL INDIVIDUALY TO ANYONE WHO IS IN NEED OF A GREAT LOW POWER DUAL COIL DPDT RELAY WHO'S COILS ARE RATED AT 5VDC, BUT WILL OPERATE GREAT ALL THE WAY DOWN TO 3.75VDC. BOTH SETS OF IT'S SWITCHED CONTACT'S ARE RATED AT 30V DC @1A OR 125VAC @0.5A. RELAYS ARE NEW OLD STOCK AND ARE IN A VERY SMALL PACKAGE THAT MEASURES 0.6" LONG X 0.4" WIDE X 0.2" TALL. THE 2 COILS ARE SET & RESET BUT BOTH WINDINGS CAN BE USED EITHER WAY AS LONG AS BOTH THE N.O. / N.C. CONTACTS CONNECTIONS ARE REVERSED TO MATCH THE WAY THE COILS ARE CONNECTED UP.
IT IS A GREAT LITTLE RELAY THAT OPERATES DOWN TO 3.75VDC BUT ONLY DRAWS 40-50Ma JUST LONG ENOUGH TO ENERGIZE THE RELAYS. I USED THEM WITH SOME 434MHz SAW RESONATOR RECEIVERS WHICH ALLOWED ME TO CONVERT THE MNF'S 4 CHANNEL MOMENTARY RECEIVER INTO A 2 CHANNEL LATCHING RECEIVER BUT THE WAY WE HAD IT CONNECTED 1ST CORRECT SIGNAL ARMED IT AND THE NEXT CORRECT SIGNAL FIRED OFF A CONNECTED IGNITER. BUT ANY WRONG SIGNAL OR A CORRECT ONE NOT IN THE CORRECT ORDER UNARMED THE RECEIVER'S ATTACHED IGNITER THUS INSURING NO FALSE FIRINGS. BUT YOU CAN USE THEM FOR WHATEVER YOU WANT!
RELAYS ARE NEW OLD STOCK & ARE BEING SOLD FOR $1.00EA. BUT IF YOU PURCHASE 100 RELAYS THERE IS A 10% DISCOUNT BUT IF YOU PURCHASE ALL 200 PIECES THERE'S A NICER 25% DISCOUNT!
NOTICE: EVEN THOUGH RELAYS ARE N.O.S, THEY WILL NOT COME IN THIER ORIGINAL TUBES BUT WILL COME IN A SAFE PACKAGING!
THANKS FOR LOOKING & GOOD LUCK!
