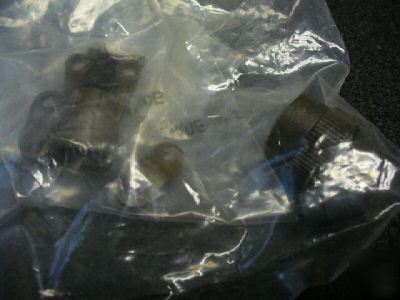

Connector,plug,electrical
BODY STYLE - 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL
OVERALL LENGTH - 1.457 INCHES MAXIMUM
OVERALL DIAMETER - 0.734 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
POLARIZATION METHOD - KEY, MULTIPLE KEY GROOVE
CONTACT POSITION ARRANGEMENT STYLE - AEAL 8-4 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY - 4 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT
III PRECIOUS MATERIAL - GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT - 0.004 GOLD GRAINS, TROY AND 0.004 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
MFR SOURCE CONTROLLING REFERENCE - 30-175-5S
