Changeover switch 20A 2-pole [change-over cam rotary]

Two Pole Changeover* Switch 20amp [ AC21A Iu=Ith thermal rating :see manufacturers website below for more detailed ratings]
*Two position. Four switching contacts: Two Normally Closed and Two of Normally Open.

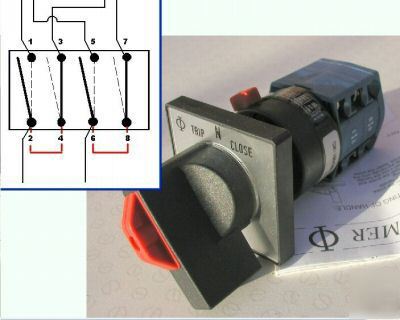

By commoning these contacts in pairs a standard two-pole changeover function is possible. This is typically done by linking terminals 2 & 4 and linking terminals 6 & 8. [see inset diagram on picture]
Allows for switching of power [live & neutral] from one device or circuit to another or switching of a circuit from one power source to another eg. switching a circuit from mains to a generator or inverter back-up supply or between these two.
For easy fitting the whole end section can be released from the unit by operating a single red button.
Further Tech. details and specifications for the CG8 series available via: [copy and paste the address into the address bar]
http:// /0/switch/cat120.htm
http:// /0/elecdata/evcg8.htm
Please note that the face plate is labelled TRIP N CLOSE. This is labelling for another type of switch and you may need to relabel the switch for your application.
Any questions - ****@onetel.com
Electrical installation and servicing work should always be carried out by a competent and qualified electrician. The information given above is presented as a description of the item and it's suggested use. It is not in any regard a guide to installing this item. Please refer to the given manufacturers pdf file when making decisions relative to the your intended application.
"WARNING" - Misuse or misapplication of products may cause explosion, electric shock, fire, personal injury, property damage or trauma to hamsters or other small mammals. All of the products we offer are for users having technical expertise. It is important that you analyze all aspects of your application and review the technical information concerning the product or system. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. etc,etc. Yadda, yadda yadda.
For any other information or advice do not hesitate to contact me.
