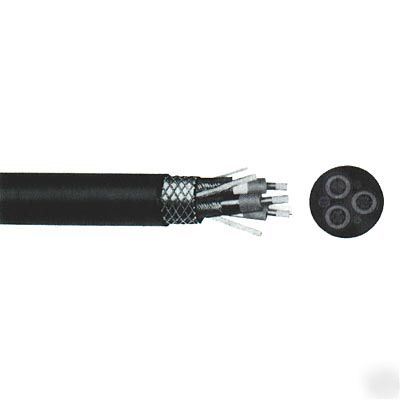

2/0 awg type shd-gc shovel dragline mining cable wire
SIZE.......................................... 2/0awg
CONDUCTORS........................ 3
STRAND................................... 259
GROUND WIRE........................ (2) #3
GROUND CHECK..................... #8
OUTSIDE DIAMETER............... 1.960"
CURRENT (amps)..................... 243
VOLTAGE................................... Available in 2kv, 5kv, 8kv or 15kv
* Tinned annealed copper. Each wire positively positioned in the strand to distribute stress evenly and provide longer flex life.
* Extruded semi-conducting shield minimizes formation of harmful ozone and helps distribute stress evenly to provide a longer life.
• Tinned copper braid over color-coded semi-conducting tape (on 5KV and above).
• Increases safety, helps distribute stress more evenly and inhibits formation of harmful ozone.
* The colors are black, white and red. The grounding conductors are uninsulated and the ground check conductor is yellow.
• Textured fiber composition cord. An extra strength fiber cord which helps retain cable configuration under severe crushing and stress
* Ethylene propylene rubber. Rated for 90°C. Has superior overload (130°C) and short circuit (250°C) protection.
• Reinforced double pass extra heavy-duty hypalon®. This jacketing is tough, durable and highly flexible. It has superior resistance to crushing, abrasion, compression, impact, chemicals, water, aging, weathering and harmful ozone. Colors other than black are available on special order.
* Tinned copper positioned in the interstices to ground the shields
• Stranded bare copper insulated with ethylene propylene rubber
* Suitable applications include power supply cables to open pit, strip and deep mines. Also to provide power to shovels, dredges, cranes and drag lines. They can be used in wet or dry locations and are rated 90°C for continuous conductor temperature.
* MSHA and Penna. Division of mine safety accepted.
STOCK: All of our wire is not guaranteed to be in stock. If it is not in stock, you will be notified when you request a quote.
