Tqfp 44 pin 0.8MM smt surface mount prototype board
MeasureExplorer prototype board product:
ME-PB-SM-TQFP44-80, 44 pin 0.8mm pitch surface mount prototype board, 1

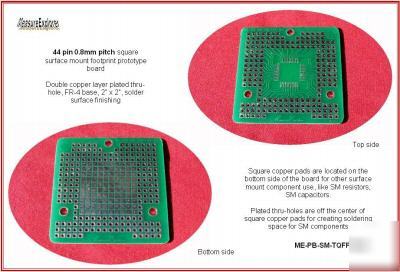

44 pin 0.8mm pitch square surface mount footprint prototype board
Double copper layer plated thru-hole, FR-4 base, 2†x 2â€, solder surface finishing
Square copper pads are located on the bottom side of the board for other surface mount component use, like SM resistors, SM capacitors.
Plated thru-holes are off the center of square copper pads for creating soldering space for SM components
