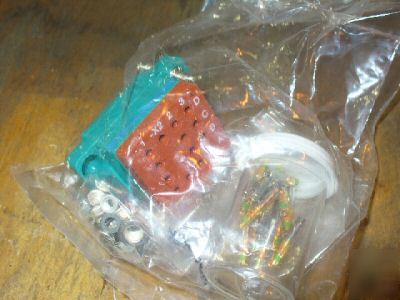

Socket,plug-in electronic components
CONTACT POSITION ARRANGEMENT STYLE - 1419A IRREGULAR
ACCOMMODATED CONTACT QUANTITY - 14
CONTACT MAXIMUM CURRENT RATING IN AMPS - NOT RATED
CONTACT MATERIAL - BERYLLIUM COPPER
CONTACT SURFACE TREATMENT - GOLD AND COPPER OR GOLD AND NICKEL
BODY STYLE - 65B TOP MOUNT W/METAL SADDLE
OVERALL LENGTH - 1.740 INCHES MAXIMUM
OVERALL HEIGHT - 0.890 INCHES MAXIMUM
OVERALL WIDTH - 1.000 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY - 14 CRIMP
MOUNTING TYPE FOR WHICH DESIGNED - CHASSIS
MOUNTING METHOD - THREADED STUD
THREAD SERIES DESIGNATOR - UNC AND UNF AND UNC
NOMINAL THREAD SIZE - 0.112 INCHES AND 0.190 INCHES AND 0.112 INCHES
THREAD QUANTITY PER INCH - 40 AND 32 AND 40
POLARIZATION TYPE - CONTACT POSITION
TEST DATA DOCUMENT - 81349-MIL-S-12883 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-S-12883/40 GOVERNMENT SPECIFICATION
III TEMP RATING - -70.0 DEG CELSIUS AND 125.0 DEG CELSIUS
III PRECIOUS MATERIAL AND WEIGHT - 0.014 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-S-12883/40
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M12883/40-19S
