OPA656 fet input wide bandwidth, lo noise opamp (4)
FET input, Wideband, Low Distortion, Low Noise OpAmp
The high unity-gain stable bandwidth and JFET input allows exceptional performance in high-speed, low-noise integrators.
The high input impedance and low bias current provided by the FET input is supported by the ultra-low 7nV/rtHz input voltage noise to achieve a very low integrated noise in wideband photodiode transimpedance applications.
Broad transimpedance bandwidths are achievable given the OPA656’s high 230MHz gain bandwidth product. As shown below, a –3dB bandwidth of 1MHz is provided even for a high 1Mohm transimpedance gain from a 47pF source capacitance.
* 500MHz UNITY-GAIN BANDWIDTH
* LOW INPUT BIAS CURRENT: 2pA
* LOW OFFSET AND DRIFT: ±0.25mV, ±2µV/°C
* LOW DISTORTION: 74dB SFDR at 5MHz
* LOW INPUT VOLTAGE NOISE: 7nV/rtHz
* WIDEBAND PHOTODIODE AMPLIFIERS
* SAMPLE-AND-HOLD BUFFERS
* WIDEBAND PRECISION AMPLIFIERS
* TEST AND MEASUREMENT FRONT ENDS
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
item nr 3-5: S&H 80% less than first (or 20% of first)
item nr 6-10: S&H 90% less than first (or 10% of first)
Be sure to add me to your favorites list!

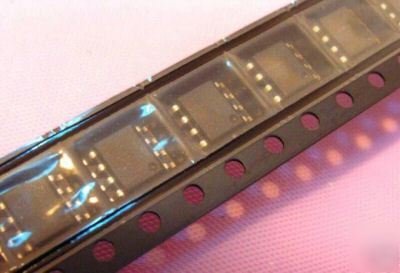

Stock photo may show different part number
