New lot of 4 japan servo nema 23 stepping motor

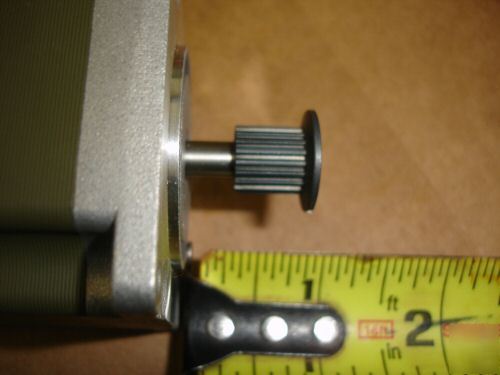

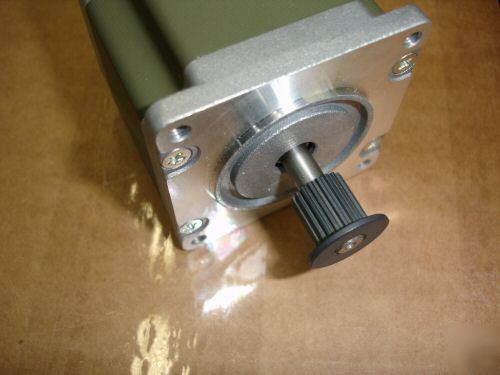

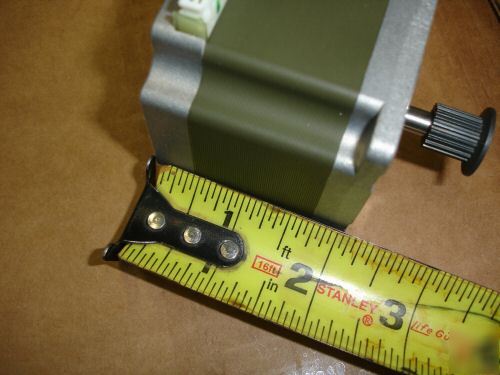

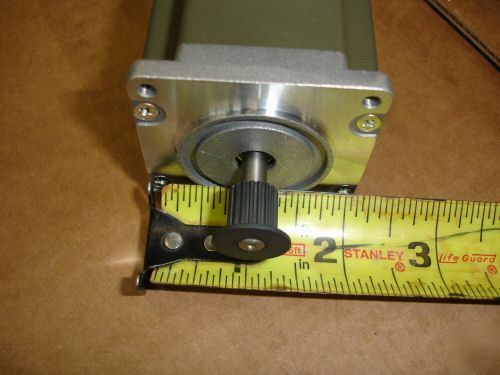

New Nema 23 Japan Servo KH56KM2-B093 stepping motors.
(You will get 4 motors per each lot that you order)
These motors feature Low Noise, High torque (118 oz-in) and low vibration. The motors have a 1.8° step size, for 200 steps per revolution.

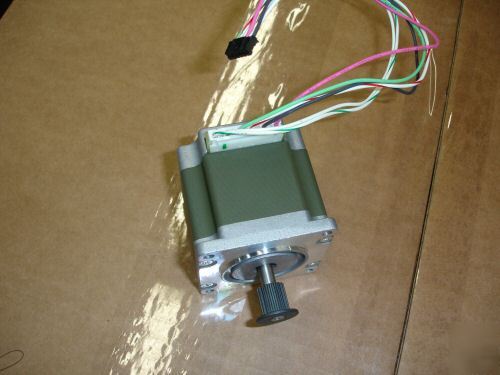

They are six wire 2 phase stepping motors. Each phase is 4 ohms or 2 ohms center tap to end. They each weight 1.4 lbs.
These motors are new and were made for a large OEM therefore the -BO93 number
I am providing the link for the
http://www.japanservo.co.jp/digital/english/general/pdf/KH56K.pdf
I'm not sure of running voltage but I have mine hooked up to power supply "Mean Well 24vdc 6.8 amp."
I also think many would like to know that it can be hooked up with 4 wires. It seems there is no information on internet to help us hobbiest.

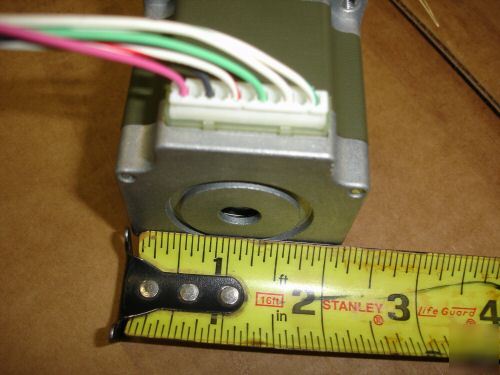

The colors are as follows on controller:
White with green stripe to terminal A
I have them hooked up to "Mechatronics" 4 axis controller available on e-bay and it hooks up fine and runs flawlessly with Mach 3
