AD8307 + AD603 for 120DB if log amp kit for sa (qty:1@)

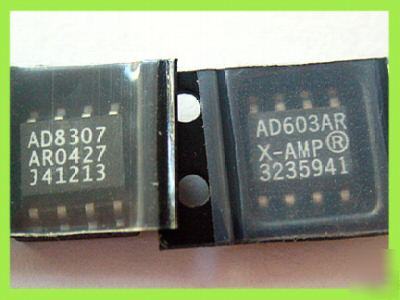

Here you are looking at one set of AD8307AR and AD603AR which they can work together to provide the state-of-the-art IF measurements in applications such as spectrum/network analyzers and other high dynamic range instrumentation.
AD8307 is a 92 dB Logarithmic Amplifier and AD603 is a Low Noise, Voltage-Controlled Amplifier for use In RF And IF AGC Systems. These NOS parts now provide an upgrade path for your homebrew Spectrum Analyzer and Scaler Network Analyzer. Details on this 120dB measurement can be found on page 16 of AD8307 datasheet. This chip is very common, so for sure you would find lots of project reference from the interent. I show one here in the reference below.
[Item would be dispatched as "Gift" to individuals registered as private users for no tax purpose. No invoice, therefore, would be attached. Delivery is by registered mail service. Tracking number will be provided within 24 hours after item is dispatched.]
Download AD8307 datasheet here
Power Meter designed by OZ2CPU. and published in October 2002, ELEKTOR MAGAZINE.
Check to see if they still have the kit.
Just the AD8307AR cost you Euro 31.72 each by Barend Hendriksen HF Electronics plus another Euro 29.90 for AD603AR ie. total Euro 61.62 (~ GBP40) for one setl!
