Irda 1KW infrared bga reballing welding rework station
870B 1000W ( 1KW) high power Infrared BGA reball rework station
High grade lens and infrared head unit provide more even energy disburition
High power head unit capable 30-50cm effective heating area ( 60% higher then our lower cost model)
Large pre-heat area ( 9.5” x7”) ensure center working area temperature stability
Temperature probe close loop temperature control.

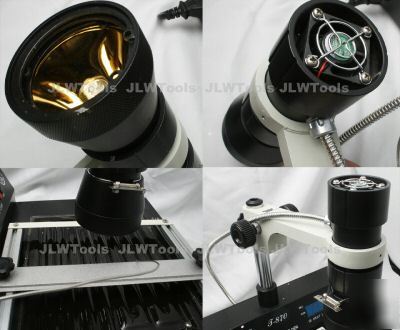

Infrared welding technology. Special design welding head with cooling system and height adjustment
Desolder BGA components from 30 ~ 50mm square
Only By JLWTools special 175W/800W power design 9.5” x 7” far-infrared board heater
Build in Rail fixture hold the large PCB safe and suitable for desoldering / reworking on small BGA components.
Visual blown filter for operational safe.
Suitable for use in repairing mobile phones, PDA, notebook computer, game console etc.
Infra-red lamp body heating size
Preheating chassis preheating size
Infra-red lamp body temperature adjustable
Preheating chassis temperature adjustable
Voltage: 220V AC Model A / 110V AC Model B USA ( model design specific for USA power)
For warranty parts and service:
Spare parts are available upon providing parts number, manual of explosion View is included
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
