> 3060 / MBR3060PT gi/vishay dual schottky rectifier

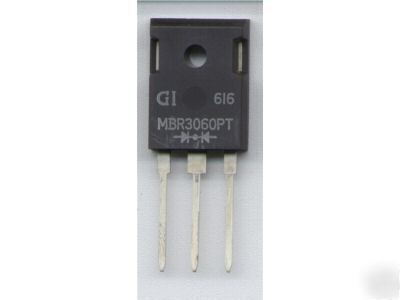

3060 / MBR3060PT gi/vishay dual schottky rectifier
Now over 1,400 items in our Store!
Please Note: This spec sheet covers several different components. I am only offering the MBR3060PT
35 to 60 Volts Forward Current - 30.0 Amperes
Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
Dual rectifier construction, positive center-tap
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
For use in low voltage, high frequency inverters, free-wheeling, and polarity protection applications
Guardring for overvoltage protection
High temperature soldering guaranteed: 250°C/10 seconds, 0.17" (4.3mm) from case
JEDEC TO-247AD molded plastic body
Lead solderable per MIL-STD-750,
