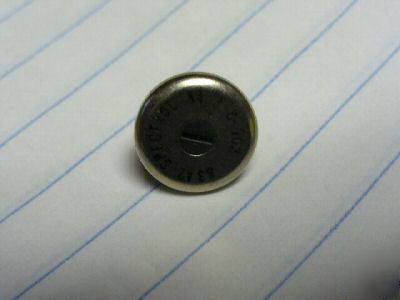

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 5.000 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -5.0 TO 5.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STOP TORQUE - 15.00 INCH-OUNCES
MAXIMUM STARTING TORQUE - 5.00 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 5.00 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -50.0 TO 50.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 1.5 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 70.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 175.0 SINGLE SECTION
BODY DIAMETER - 0.500 INCHES NOMINAL
BODY LENGTH - 0.180 INCHES NOMINAL
ACTUATOR TYPE - FLUSH DRIVE WITH SLOT-HOLE
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 320.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - STOPS
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 300.0 NOMINAL
MOUNTING METHOD - PRINTED CIRCUIT
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.200 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.100 INCHES NOMINAL
TERMINAL LENGTH - 0.188 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
