RJ11 pcb jack molex 6/4 r/a low profile socket qty: 25

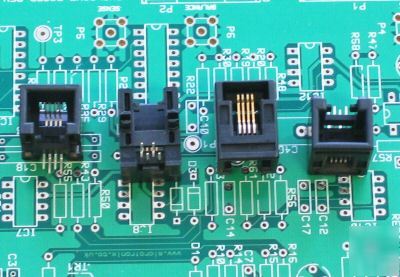

RJ11 R/A LOW PROFILE PCB JACK SOCKET
PCB mounting data sockets with low profile bodies and reliable gold plated contacts. Sockets will accept standard RJ type data plugs. Designation of socket type is identified by the number of contact positions followed by the number of contacts
Insulation Resistance 500M? min.
Contact Material Phosphor Bronze
Contact Plating gold over nickel
Housing Material Polyester UL94V-0
Positions / Loaded Contacts 6/4
Orientation Right Angle (Side Entry)
Mounted Height 11.50mm (.453")
Surface Mount Compatible (SMC) No
PCB Retention Snap-in Plastic Peg
Contact Phosphor Bronze (CuSn)
Plating Contact 1.3µm (50µ") Gold (Au)
Plating Tail 1.9µm (75µ") Tin (Sn)
Housing Material Polyester, Glass-filled
Durability [mating cycles] min. 500 cycles
Contact Resistance [ohms] 20 milliohms max.
Insulation Resistance [ohms] 500 Megohms min.
Temperature Range -40°C to +80°C
Product Specification PS-95001-E
First Contact to End 3.17mm (.125")
Pitch / Center Spacing 1.27mm (.050")
http:// /pdm_docs/sd/950012641_sd.pdf
LARGER QUANTITIES AVAILABLE PLEASE ASK - DISCOUNTS AVAILABLE
RS CHARGE OVER 80p EACH FOR THIS PART!!
