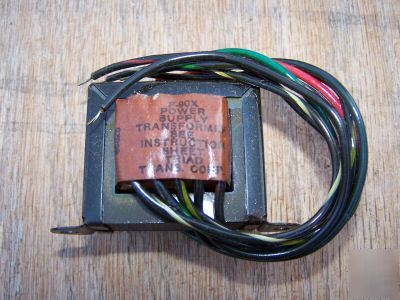

> New ve power transformer ac dc 26 voltages obtainable
New ve power transformer ac dc 26 voltages obtainable
These trans. are desighned for use with silicon diode rectifiers, to supply the DC voltages for transistors in their varios applications. but may be used with voltage doubler curcuits at 1/2 of the rated capacities.
There is a sheet that describes how to hook up the multiple voltages included i.e. wire colors.
Secondary AC voltages obainable;
vct; 40vct, 38 34 32 30 28, 20, 19, 17, 16, 15, 14vct
v; 30v 28.5v 15.5v 24v 22.5v 21v 10v 9.5 v 8.5v 8v 7.5v 7v
Check out my other items! Be sure to add me to your favorites list!

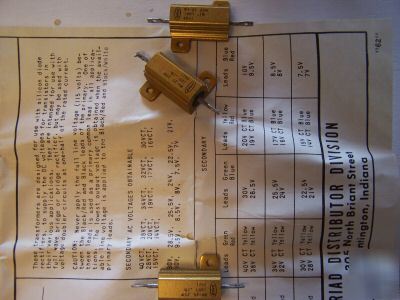

Revision: I added a picture of the chart. It states These transformers are designed for use with silicon diode rectifiers, to supply the DC voltages {it states that the primary and secondary voltages are AC} so, I don't understand what the first statement is refering to. con't: They are intended for use with full wave bridge or bridge rectifier, but may be used with voltage doubler circuits at one half the rated current.
CAUTION: Never apply the full line voltage (115 volts) between the Black/Red and Black leads of the primary. One of these leads is used as a primary common lead in all applications. The lowest output voltage is obtained when the available line voltage is applied to the Black/Red and Black/white primary leads.
Secondary AC Voltages Obtainable (continued above in previous description)
Primary 115 volts AC 60cps {Hz}
