Leader voltage comparator lvc-94 lot of two

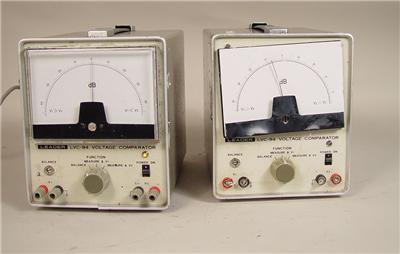

LEADER VOLTAGE COMPARATOR LVC-94 LOT OF TWO
The LVC-94 is a zero-center wide angle indication type voltage comparator which indicates a value proportional to the logarithmic value of the ratio of two voltages such as stereo signal in low frequency,namely dB value.From the pointer directon of the zero center type meter,it is possible to identify which voltage is higher(between the two voltage indicated).also,the wide angle meter and equally divided dB scale assure easy reading.The instrument permits efficient measurement of the channel separation degree of stereo receiver,stereotape-recorder,car-stereo,etc.
measuring range:46dB full scale,1 range
input frequency range:frequency range:100Hz-10KHz at 5mv-5v
frequency range:100Hz-4KHz at 2mv-5v
frequency range:100Hz-1KHz at 1mv-5v
measuring accuracy:within ±1.5dB(at 20°C)
input impedance:100KΩ approx.90pF
1 unit powers up, the other is a great parts unit
