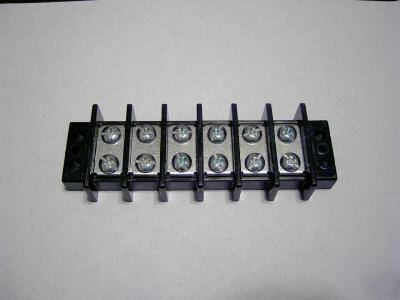

Heavy duty 50 amp 6 post terminal block #10 screws
No wimpy terminals here! This unit is built for 50 Amp operation and measures over 5 1/4 inches (133mm) by more than 1 3/4 inches (45mm) including terminal separators. There are six dual terminals which have #10 screws with an oversize thick metal conducting plate.
The phenolic base is sealed on the bottom which means they are corrosion and condensation resistant and makes them ideal for marine and industrial applications. The base is high heat resistant (290 degrees) and has dielectric strength up to 350kv.
The screws and conductors are nickel-plated brass which not only improves conductivity but eliminates arcing and connection failure.
I have many other components available. If you don't find what you need in my Store, be sure and Ask Seller a Question to ask me about what you are looking for. I may have it in stock but don't have it listed yet!
