> 6 bourns 2K ohm 3266 - 1/4 †sq trimming potentiometers

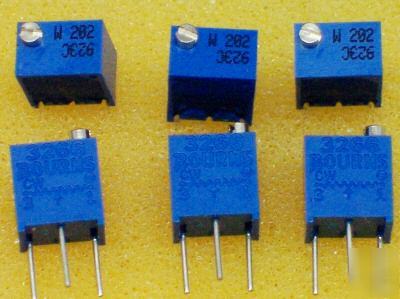

6 bourns 2K ohm 3266 - 1/4 †sq trimming potentiometers
Standard Resistance Range....................................2 Kohms
Resistance Tolerance ............±10 % std.
Absolute Minimum Resistance..............................1 % or 2 ohms max.
Contact Resistance Variation...........................3.0 % or 3 ohms max.
Voltage.....................................±0.02 %
Resistance ...............................±0.05 %
Resolution.....................................Infinite
Insulation Resistance ................500 vdc.
Sea Level ..................................600 vac
80,000 Feet...............................250 vac
Effective Travel..................12 turns nom.
70 °C ......................................0.25 watt
150 °C .........................................0 watt
Temperature Range ....-55 °C to +150 °C
Temperature Coefficient ....±100 ppm/°C
Seal Test........................85 °C Fluorinertâ€
Humidity........MIL-STD-202 Method 103
Load Life ...1,000 hours 0.25 watt 70 °C
Rotational Life ........................200 cycles
Torque .............................3.0 oz-in. max.
Mechanical Stops..................Wiper idles
Terminals ........................Solderable pins
Please check out our other parts and components in our
THIS IS THE ONLY WAY WE CAN GET TRACKING NUMBERS.
WE WILL NOT BE RESPONSIBLE FOR LOST PACKAGES.
We have included calculated costs to the US via
1st Class and Parcel Post plus
However if you chose to use such services we will be unable to help locate a package if lost. The postal service doesn't provide a tracking number unless Priority Mail service is used.
Be sure to add me to your favorites list!
