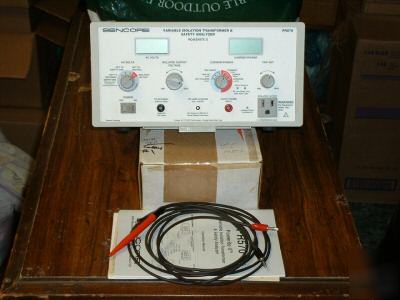

Sencore PR570 powerite ii -- excellent condition
The Sencore PR570 Powerite II features six functions in one compact package. First, the the PR570 includes an isolation transformer to provide isolation for devices which place an AC potential with respect to earth ground on their internal measurement reference points. This eliminates a shock hazard for service personnel and also provides safety for test equipment and the device being serviced.
Secondly, the PR570 includes AC line & receptacle checks to insure that the receptacle used to power the device under test is wired correctly and is supplying correct line voltage.
Third, the PR570 includes an adjustable AC transforner high allows you to vary the isolated AC output voltage from 0 - 140 volts AC. You can adjust to high or low output voltage to check regulator and shut-down circuit operation or adjust to high output voltage to cook out intermittent troubles.
Fourth, the PR570 provides safety tests to check for hot chassis operation and to test for potentially unsafe leakage current paths.
Fifth, the PR570 provides an adjustable output current trip to allow you to safely limit the amount of current available to any device connected to the isolated output.
Finally, the PR570 allows you to easily monitor the output current and power being drawn by the device connected to the isloated output socket, at the same time you monitor the input voltage.
The unit is in excellent condition!! Includes operating, schematic & parts list.
