New xp power flexpower X7-2P2P2P power supply

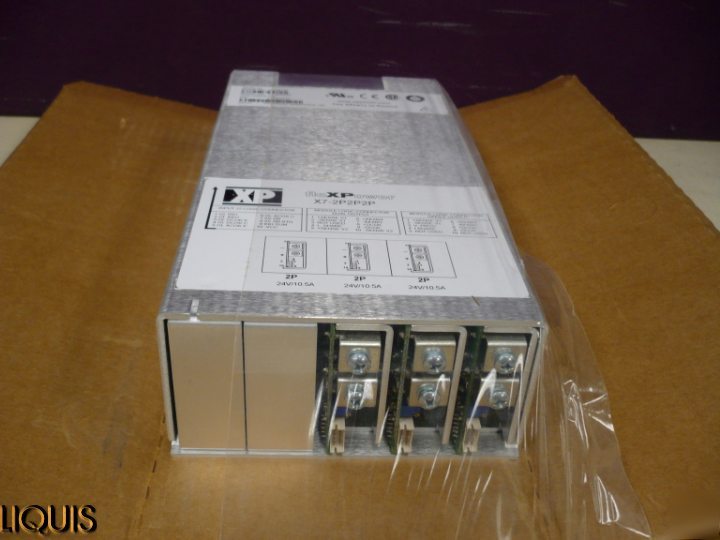

XP POWER FLEXPOWER X7-2P2P2P New Power Supply
Model: FLEXPOWER X7-2P2P2P Power Supply
Specifications (includes Data Plate information if applicable):
85-264 VAC (120-370 VDC). Full power at 90 VAC derate by 10% at 85 VAC
47-63 Hz, 400 Hz (unit meets all specs at 400 Hz, except leakage current)
9.33 A at 115 VAC, 4.67 A at 230 VAC
0.99 typical at 115 VAC & 230 VAC full load
Three 24 Volt, 10.5 Amp modules
20 ms from 90 VAC input and full output load
50 mV or 1% pk-pk at 20 MHz BW, whichever is greater
115 °C measured internally, recycle mains to reset
Compensates for up to 0.5 V drop
4000 VAC Input to Output, 1500 VAC Input to Ground, 250 VDC Output to Ground
60 kHz typ PFC, 200 kHz typ modules
225 kHrs to MIL-217F at +25 °C
-20 °C to +70 °C. For operation above +50 °C derate linearly to 50% load at +70 °C. Reverse air option derate from +40 °C to half load at +60 °C
Forced-air cooling (via field-replaceable internal fan)
MIL-STD-810 Method 516.4 Procedure 1, 30 g half sine, 6 axis
MIL-STD-810 Method 514.4 Procedure 1, 1 g 5-500 Hz, 3 axis
Overall Physical Condition: In open original box appears unused.
