Insmart temperature recorder - data logger
The temperature recording kit includes everything you need to monitor temperature virtually anywhere.
Simply place the tiny recorder anywhere you want to record temperature. No power required.
The recording device is 6mm high, 17mm in diameter and is fully enclosed in a stainless steel case and is water and chemical resistant.
It can store a maximum of 2048 time stamped temperature samples from -40°C to +85°C. The sample interval is programmable from 1 to 255 minutes.
* Checking food temperature, refrigerator (*below 5°C), freezer (*below –18°C). Is your fridge set correctly?
* Monitoring buildings, room and storage temperatures.
* Monitoring equipment and cabinet temperatures.
(Some fridges have large temperature gradients, you may be surprised at the results!)
* - According to frozen food info http:// .au/html/s02_article/default.asp?id=83&nav_top_id=83&nav_cat_id=300
Step 1 - Connect Recorder to the Reader.
Step 2 - Use supplied software to select the sample period and commencement time.
Step 3 - Place Recorder anywhere you want to record temperature.
Step 4 - Retrieve Recorder and place on the Reader to view or print a graph of the temperatures.
* Self contained digital thermometer measures temperature from -40°C to +85°C.
* Records up to 2048 time stamped temperatures using inbuilt real time clock.
* Sample rate selectable from 1 minute to 255 minutes.
* Records for over two weeks using a 10 minute sample interval.
* Data can be accessed whilst affixed to objects.
* Durable water and chemical resistant stainless steel case.
* Temperature conversion accuracy ±1°C from -30°C to +70°C
* Up to 10 year battery life (2,500,000 temperature samples) non replaceable. Unit can be switched off between recording sessions to extend life.

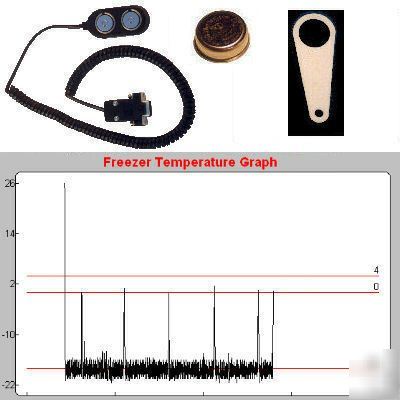

Sample Starter Kit includes the following items
1 Retaining reader PC serial DB9 interface
1 Tiny Temperature Recorder software for Windows Vista/XP/2000/9x
Additional recorder with plastic clip $38.00. Additional reader with software license $47.00.
Software works in Celsius or Fahrenheit. Dates will be formatted according to custom of country.
Temperature graphs can be maximized to fill the screen. They are interactive so you simply move your mouse around the graph and the read out displays the exact date, time and temperature of the mouse position. Any number of temperature lines can be added to a graph to clearly indicate temperature levels. The spikes visible in the graph is the freezer performing defrost cycles. The graph can be printed and the data can be exported as an Excel csv file.
Additional information can be viewed at http:// /temperature/index.html. There are also details on our low cost RAFTER PC temperature display and recording system.
Use of software subject to license agreement http:// /swlicense.html
