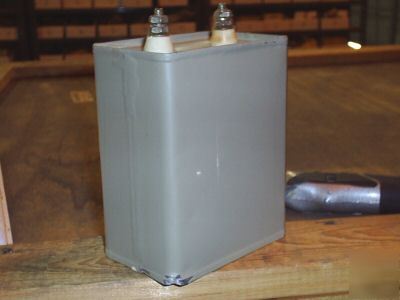

Capacitor,fixed,paper dielectric
CAPACITANCE VALUE PER SECTION - 6.000 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION - -4.00 TO 7.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION - 750.0 AC-RMS SINGLE SECTION
NONDERATED OPERATING TEMP - -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
BODY STYLE - 14A W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE
BODY LENGTH - 3.781 INCHES NOMINAL
BODY WIDTH - 2.500 INCHES NOMINAL
BODY HEIGHT - 4.750 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR - 1C NO COMMON OR GROUNDED ELECTRODE(S)
TERMINAL TYPE AND QUANTITY - 2 STANDOFF, THREADED STUD
TERMINAL HEIGHT FROM BODY - 1.000 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
SPECIAL FEATURES - WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION - FEAT
(NON-CORE DATA) OVERALL LENGTH - 3.781 INCHES NOMINAL
(NON-CORE DATA) OVERALL HEIGHT - 5.750 INCHES NOMINAL
