Bbc boveri brown logic card gh r 436 0000 vo 062 648 65

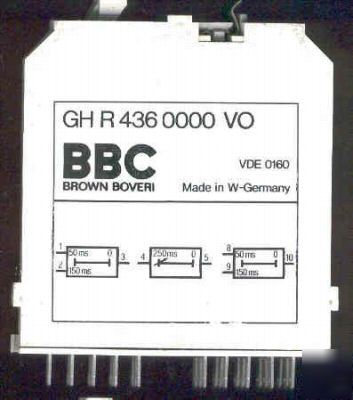

GH R 436 000 VO Time delay card
Made by BBC Brown Boveri. It was sold under the Sigma-Tronic B system for Industrial controls.
This is a used, and tested card in good condition.
With a 3 month RTB (Return To Base) Warranty.
The Time delay card R 436 /V0 is used to provide short delay times without a high accuracy demand e.g. for reduction of hydraulic shocks through staggered operation of solenoid valves.
The unit consists of 3 independent timer functions.Timer 1 and 3 have a delay of either 50 ms of 150 ms depending on terminals used and timer 2 is an adjustable timer from approx. 20 to 250 ms.
Tech Data: Current consumption: 0-signal at all outputs 2mA, 1-signal at all outputs 10mA.
The operating voltage for the sigma-Tronic system is 24v d.c. (with a tolerance of 30% i.e. 16.8v to 31.2v a ripple up to a peak amplitude of 4v is permissible)
Other part numbers used for this part are:
GH R436 GHR436 GH-R-436 GH-R 436 GH R-436 GHR 436 and 062 648 65
These modules are also ideal for small DIY logic projects (such as model railway control or hydraulic control) as they do not require a programmer or software. Also the logic circuit can be added to as required.
I have only listed the common logic blocks but if you need a particular BBC card that is not in my shop please e-mail for availability and price.
