Tektronix 475 oscilloscope maintenance & repair manuals
Tektronix 475 Oscilloscope Maintenance & Repair Manuals on CD
Included on this CD are 385 pages of extremely useful information.
* CALIBRATION PROCEDURE FOR OSCILLOSCOPE OS261U (TEKTRONIX, TYPE 475), OS261A(V)1U (TEKTRONIX, TYPE 475 OPTION 7), OS261B(V)1U (TEKTRONIX, TYPE 475 OPTION 4), OS261C(V)1U (TEKTRONIX, TYPE 475 OPTION 4/7), AND TEKTRONIX, TYPE 475A (TEKTRONIX, TYPE R475A)
Section 1 - Identification and Description
Section 2 - Equipment Requirements
Section 3 - Calibration Process
* OPERATOR’S, ORGANIZATIONAL, DIRECT SUPPORT AND GENERAL SUPPORT MAINTENANCE MANUAL FOR OSCILLOSCOPE OS-261B(V)1/U (NSN 6625-01-101-1318) (TEKTRONIX MODEL 475 WITH OPTION 04)
Section 1 - General Information and Installation
Section 2 - Operating Information
Section 3 - Circuit Description
Section 5 - Performance Check
Section 6 - Schematic Diagrams & Options 04 and 07

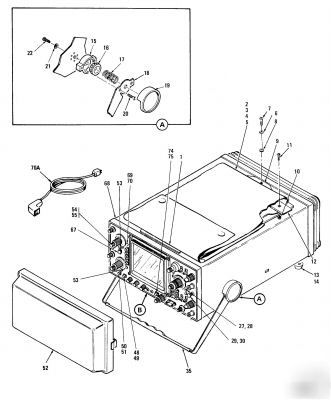

Section 7 - Replaceable Mechanical Parts
Appendix B - Components of End Item List
Appendix C - Additional Authorization List
Appendix D - Maintenance Allocation
Appendix E - Expendable Supplies and Materials List
* ORGANIZATIONAL, DIRECT SUPPORT, AND GENERAL SUPPORT MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS LIST (INCLUDING DEPOT MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS) FOR OSCILLOSCOPE OS-261B(V)1/U (NSN 6625-01-101-1318) (TEKTRONIX MODEL 475 WITH OPTION 04) AND OSCILLOSCOPE OS-261C(V)1/U (NSN 6625-01-119-7314) (TEKTRONIX MODEL 475 WITH OPTION 04 AND OPTION 07)
Section 2 - Repair Parts List
Section 3 - Special Tools List
Public domain U.S. Government information; CD-ROM;
These manuals are in Adobe format for easy searching and enlarging the pages of text or charts.
* My CD's are professionally printed!
* No personal checks please - no exceptions!
* Florida residents to pay 6% sales tax
* $2.95 to anywhere in the U.S.
